Fittings

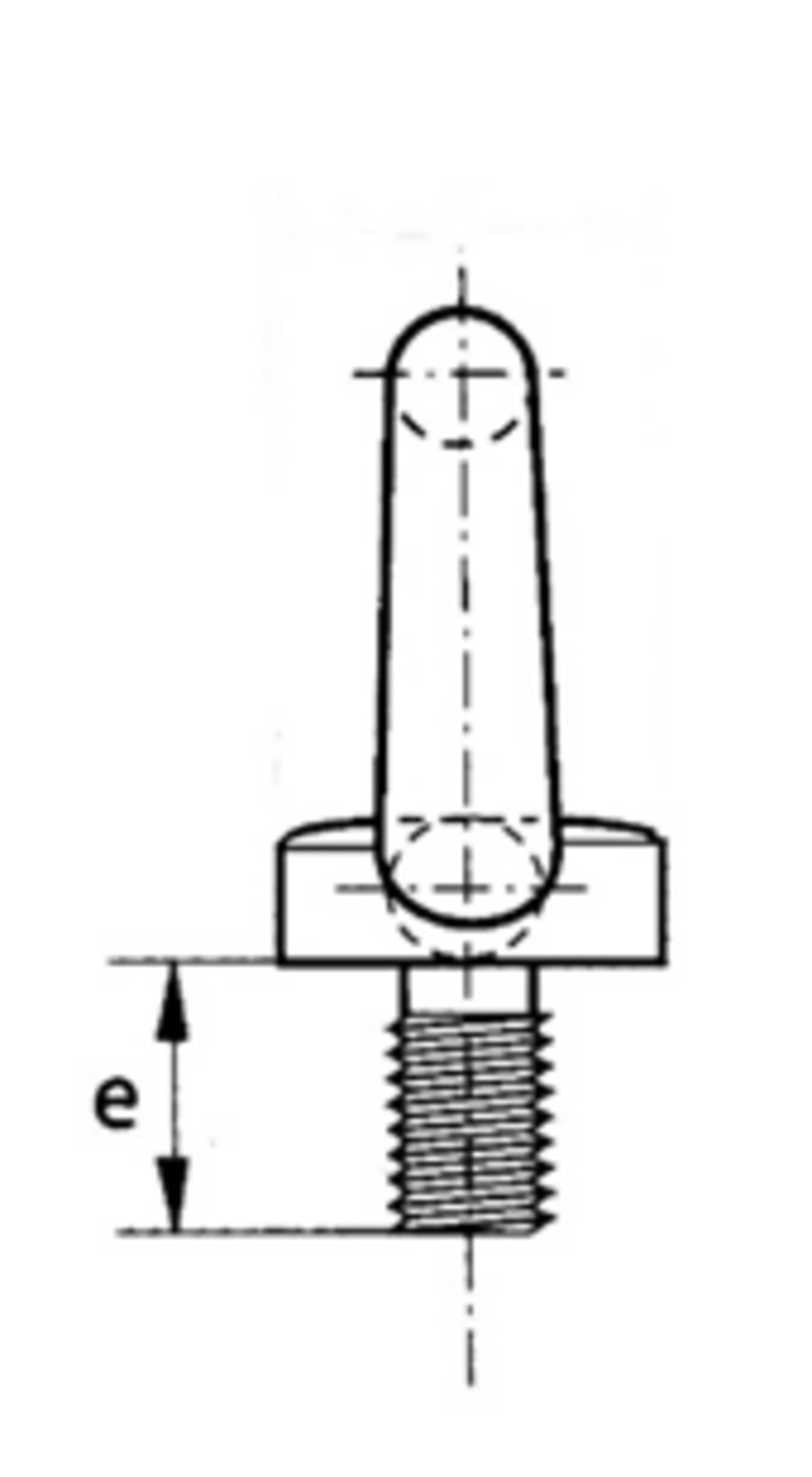

Eye bolts DIN 580 C15E, electro galvanized

Ringschrauben D I N 580 C15 E
Ringschrauben D I N 580 C15 E
Ringschrauben D I N 580 C15 E Seitliche Ansicht

More sizes on request.

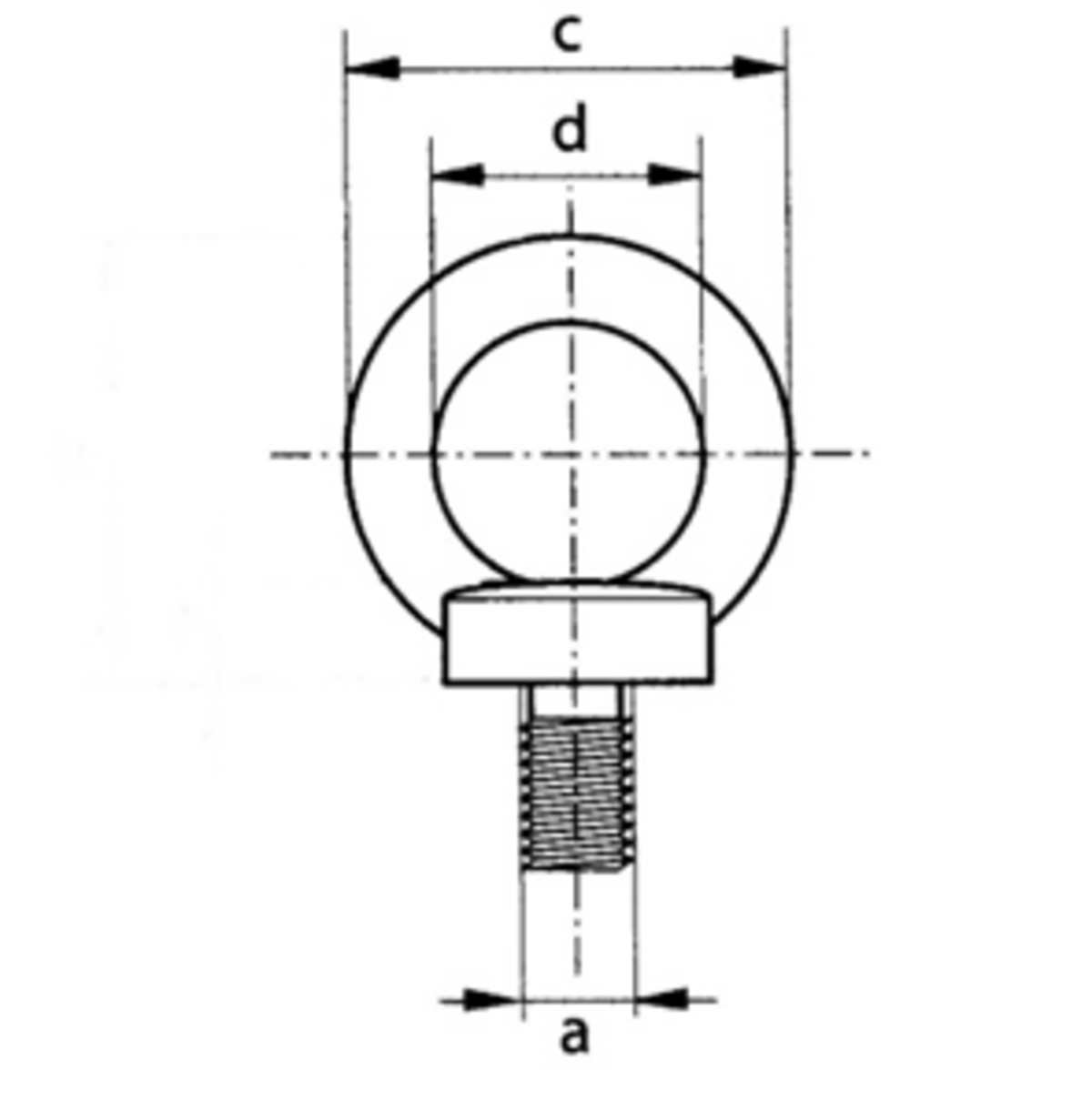

Art.-No. Size (a) Inside-Ø (d) mm Outside-Ø ( c ) mm Length of Thread ( e ) mm WLL direct use 1 bolt to WLL 2 bolts max 45° to Weight per 100 pcs. kg
47006 M 6 20 36 13 0.140 0.100 5
47008 M 8 20 36 13 0.140 0.100 6
47010 M 10 25 45 17 0.230 0.170 11
47012 M 12 30 54 20 0.340 0.240 18
47016 M 16 35 63 27 0.700 0.500 28
47020 M 20 40 72 30 1.200 0.860 45
47024 M 24 50 90 36 1.800 1.290 83
47030 M 30 60 108 45 3.200 2.300 166
47036 M 36 70 126 54 4.600 3.300 265
47042 M 42 80 144 63 6.300 4.500 403
47048 M 48 90 166 68 8.600 6.100 638

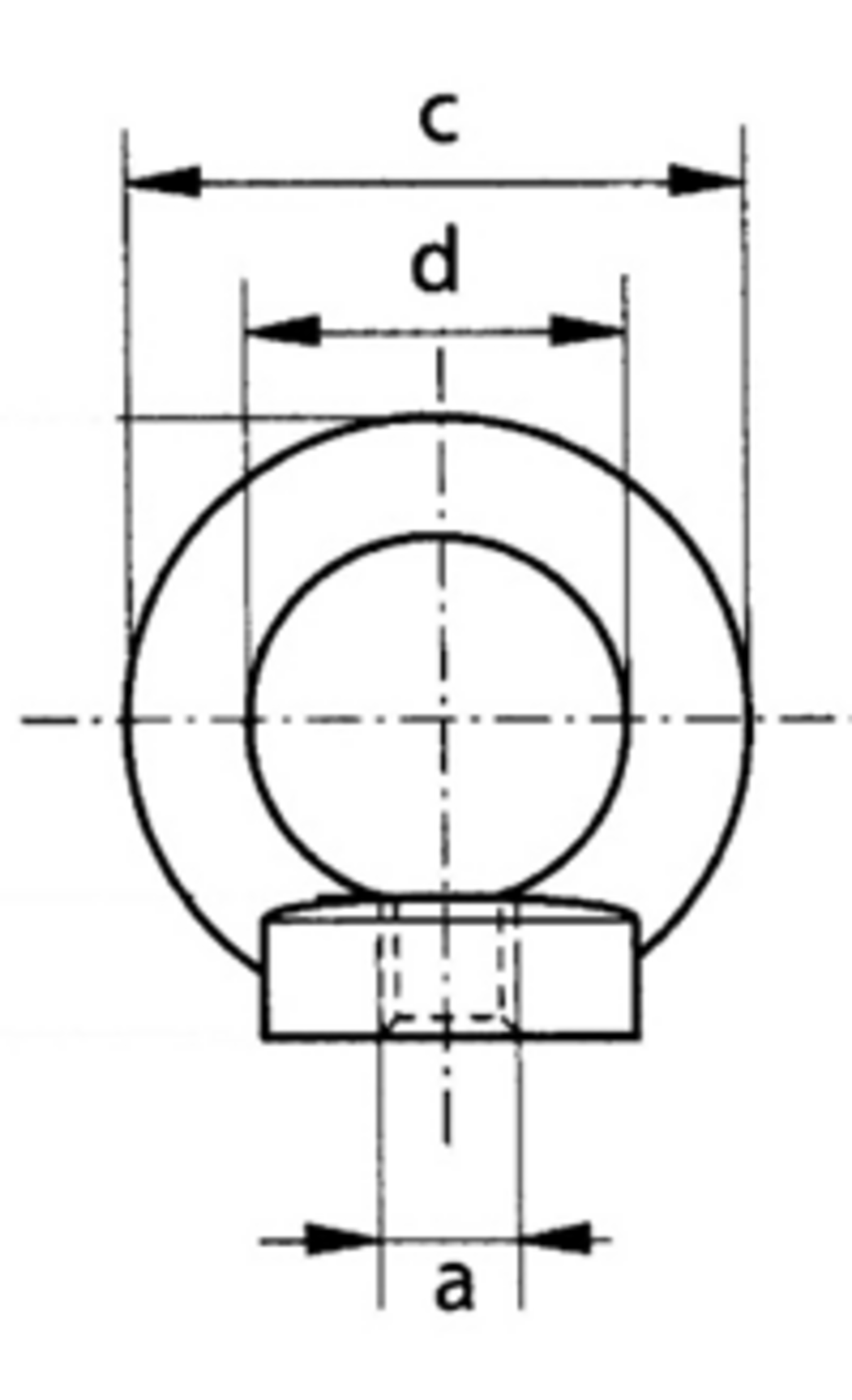

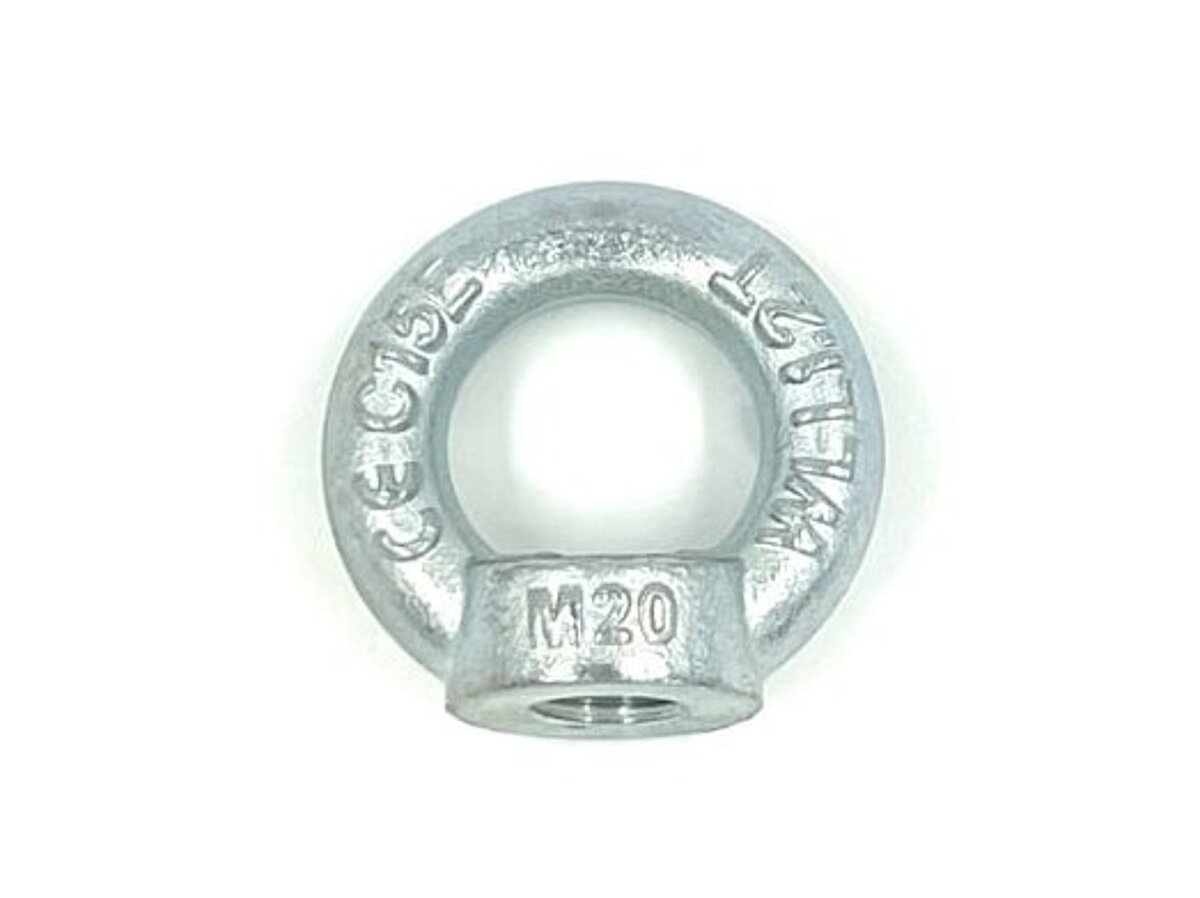

Eye nuts DIN 582 C15E, electro galvanized

Ringmuttern D I N 582 C15 E
Ringmuttern D I N 582 C15 E

More sizes on request.

Eyenuts DIN 582, C15E electro galvanized

Art.-No. size (a) Inside-Ø (d) mm Outside-Ø ( c ) mm WLL direct use 1 bolt to WLL 2 bolts max 45° to Weight per 100 pcs. kg
48006 M 6 20 36 0.140 0.100 5
48008 M 8 20 36 0.140 0.100 6
48010 M 10 25 45 0.230 0.170 9
48012 M 12 30 54 0.340 0.240 16
48016 M 16 35 63 0.700 0.500 24
48020 M 20 40 72 1.200 0.860 36
48024 M 24 50 90 1.800 1.290 72
48030 M 30 60 108 3.200 2.300 132
48036 M 36 70 126 4.600 3.300 208
48042 M 42 80 144 6.300 4.500 403
48048 M 48 90 166 8.600 6.100 638

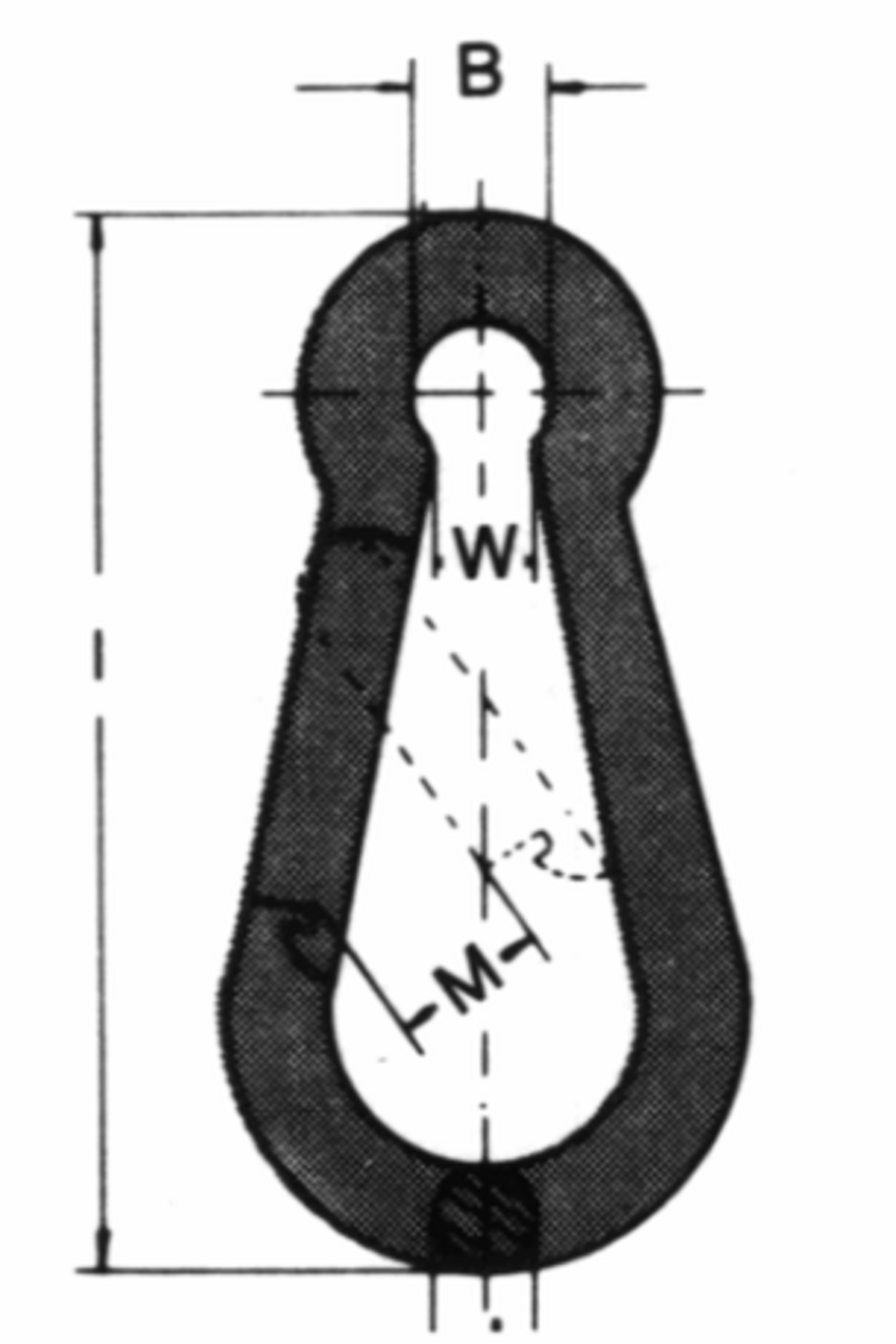

Snap Hooks DIN 5299 Form C, electro galvanized

Karabinerhaken D I N 5299 Form C
Karabinerhaken D I N 5299 Form C
Art.-No. Size Material-Ø mm Total length mm B mm M mm W mm WLL kg Weight per 100 pcs kg
50004 40 x 4 4 40 6 6 4 10 1.0
50005 50 x 5 5 50 8 7 4 120 1.3
50006 60 x 6 6 60 9 8 6 120 2.7
50007 70 x 7 7 70 10 8 8 180 4.3
50008 80 x 8 8 80 12 10 8 230 6.4
50009 90 x 9 9 90 12 10 9 250 8.8
50010 100 x 10 10 100 15 11 10 350 12.6
50011 120 x 11 11 120 18 16 11 450 19.0
50012 140 x 12 12 140 20 19 14 510 26.0
50013 160 x 13 13 160 22 23 16 600 35.0
50014 180 x 14 14 180 22 33 16 650 48.0
50015 200 x 15 15 200 24 33 16 700 57.0

Snap Hooks DIN 5299 Form C with screw, electro galvanized

Karabinerhaken D I N 5299 Form C Mit Schraubverschluss
Karabinerhaken D I N 5299 Form C Mit Schraubverschluss
Art.-No. Size Material-Ø mm (a) Total length mm (b) d mm c mm WLL kg Weight per 100 pcs kg
51006 60 x 6 6 60 9 8 120 3.0
51107 70 x 7 7 70 10 8 180 5.0
51008 80 x 8 8 80 12 10 230 7.0
51010 100 x 10 10 100 15 11 350 14.0
51011 120 x 11 11 120 18 16 450 19.0
51012 140 x 12 12 140 20 19 510 27.0

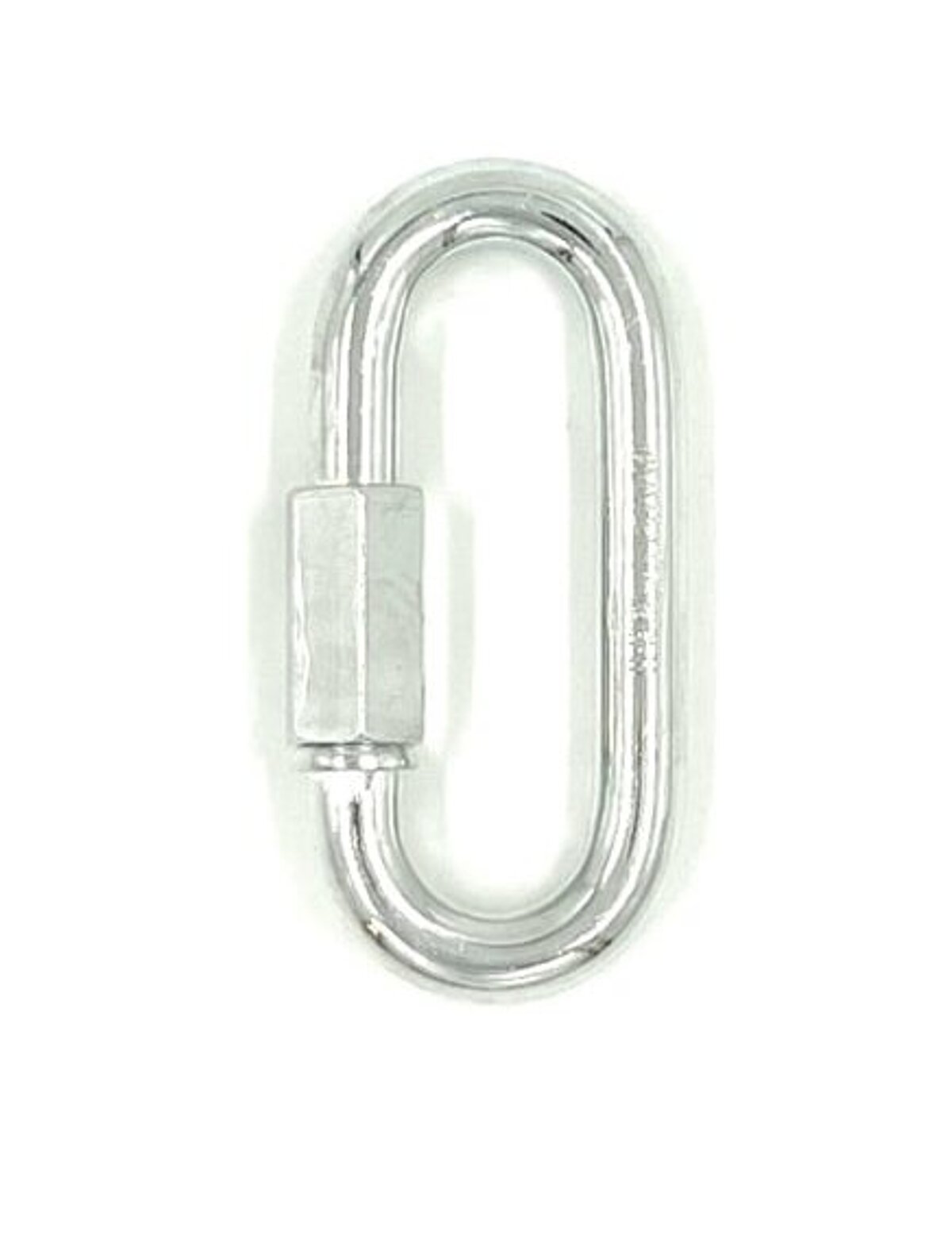

Quick-Links, electro galvanized

Kettenschnellverschlüsse (quick Links)
Kettenschnellverschlüsse (quick Links)

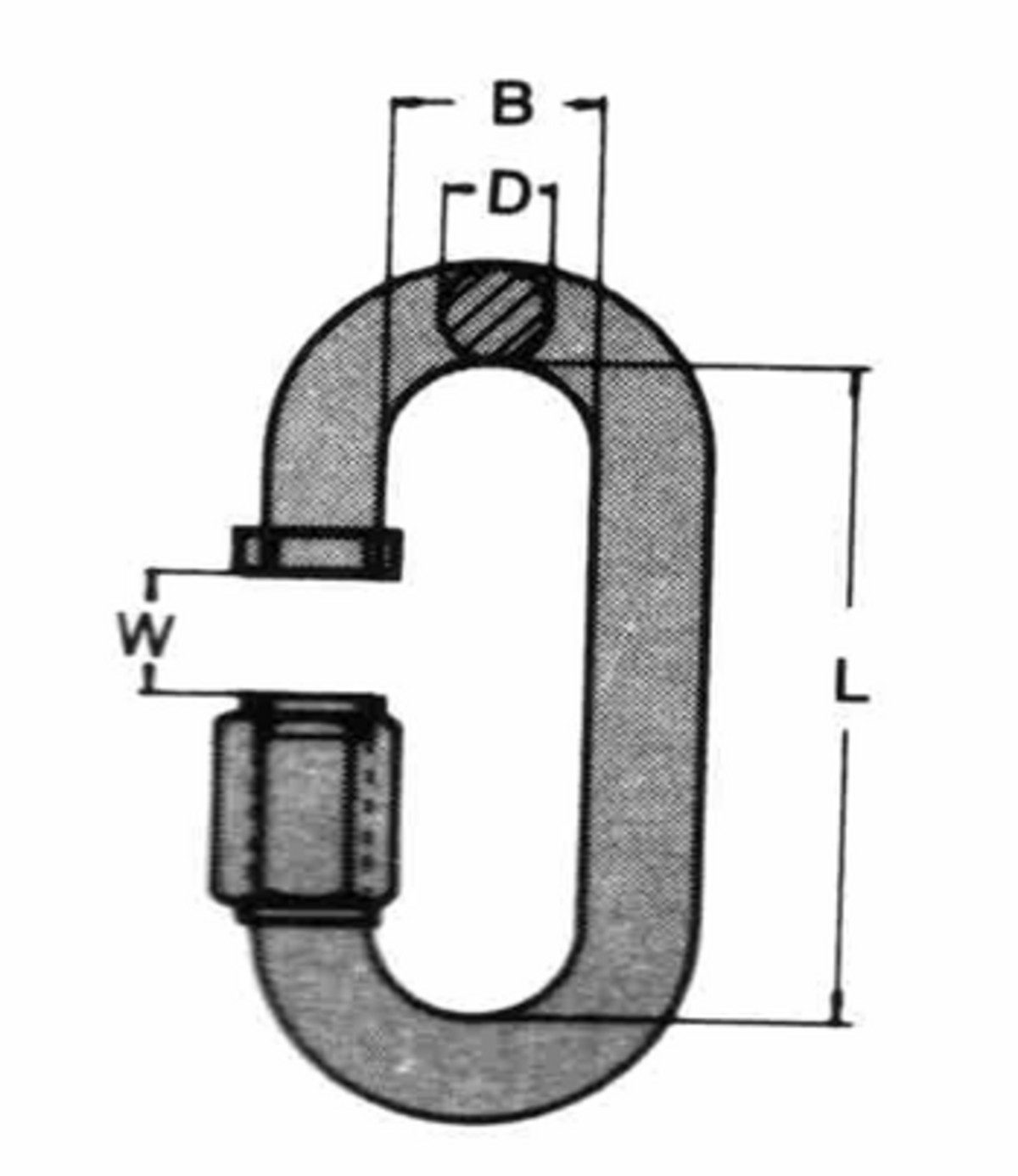

Art.-No. Size mm (D) Inside width mm (B) Inside length mm (L) Opening mm (W) WLL kg Weight per 100 pcs kg
55003 3.5 10 30 4.5 25 1.0
55004 4 10 33 5.5 90 1.2
55005 5 12 39 6.5 140 2.1
55006 6 13 45 7.5 200 3.5
55007 7 16 53 8.5 275 5.7
55008 8 16 59 10.0 350 8.0
55009 9 18 65 11.0 450 13.5
55010 10 20 70 12.0 550 14.8
55012 12 22 82 14.0 750 23.5
55014 14 27 96 16.0 1100 36.9

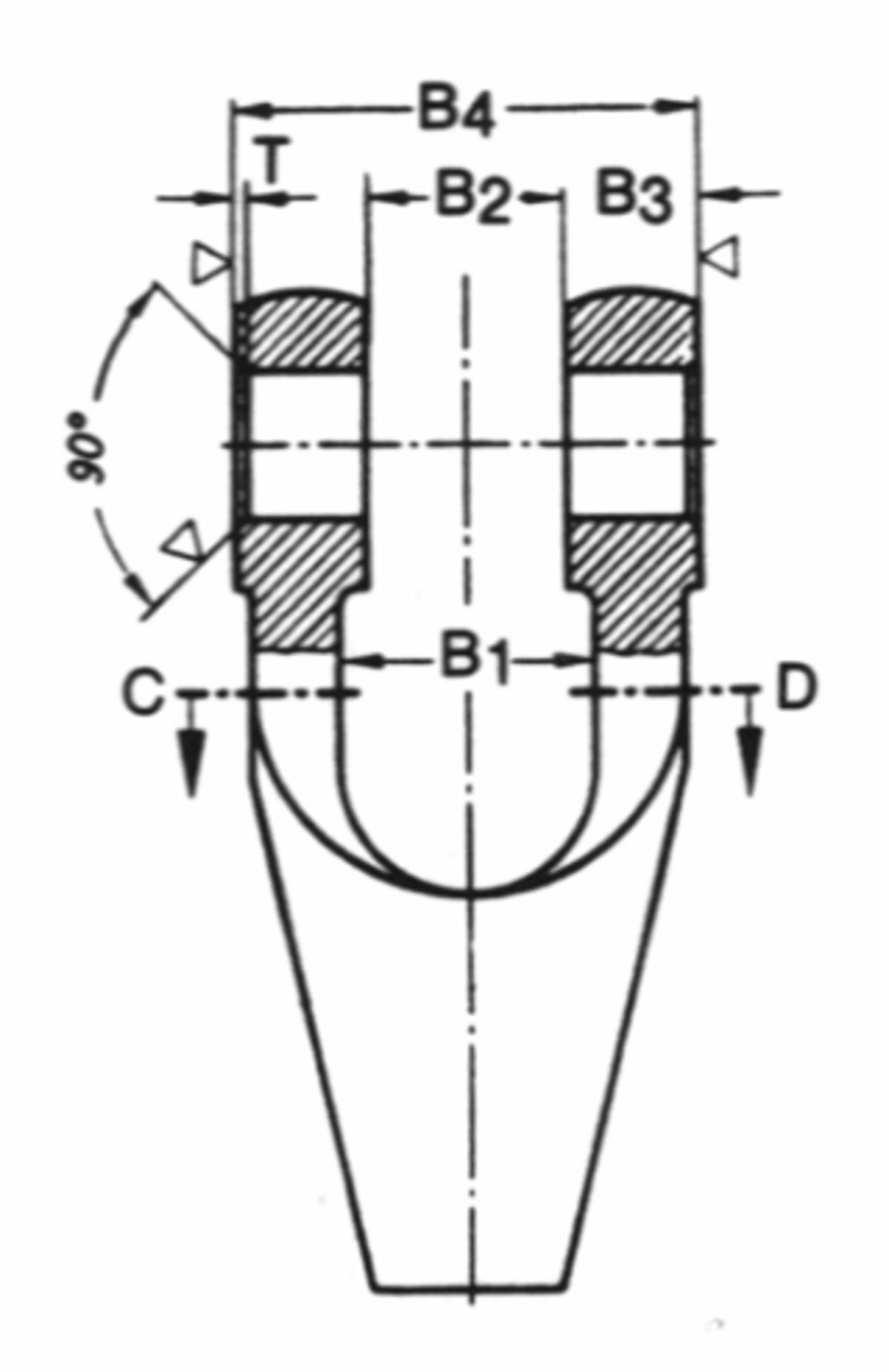

Open Spelter Sockets DIN 83313 Form B (without bolt), selfcolored

Gabelseilhülsen D I N 83313 Form B
Gabelseilhülsen D I N 83313 Form B W
Gabelseilhülsen D I N 83313 Form B S

Closed Spelter Sockets DIN 83313 Form A only on request.

Art.- No Size Rope-Ø mm WLL kg B1 mm B2 mm C mm D1 mm E mm H mm Weight per 100 pcs kg
76016 1.6 12-14 1,600 37 27 12 17 55 147 0.9
76025 2.5 14-18 2,500 45 33 14 20 67 175 1.4
76030 3.0 16-20 3,150 50 38 16 22 73 195 1.8
76040 4.0 18-22 4,000 54 42 18 24 81 212 2.4
76050 5.0 20-24 5,000 60 47 20 27 88 237 3.7
76060 6.0 22-28 6,300 67 53 23 30 94 262 5.0
76080 8.0 26-30 8,000 73 60 26 33 104 289 7.0
76100 10.0 28-34 10,000 80 66 29 36 116 320 10.0
76120 12.0 32-38 12,000 89 73 32 40 130 356 13.0
76160 16.0 36-44 16,000 100 81 35 45 143 397 18.0
76200 20.0 40-50 20,000 110 90 40 50 157 435 23.0
76250 25.0 44-54 25,000 120 100 43 55 179 480 31.0
76320 32.0 50-62 32,000 132 110 48 60 191 525 42.0
76400 40.0 58-72 40,000 150 125 54 68 218 595 60.0
76500 50.0 62-76 50,000 165 140 60 75 238 655 80.0

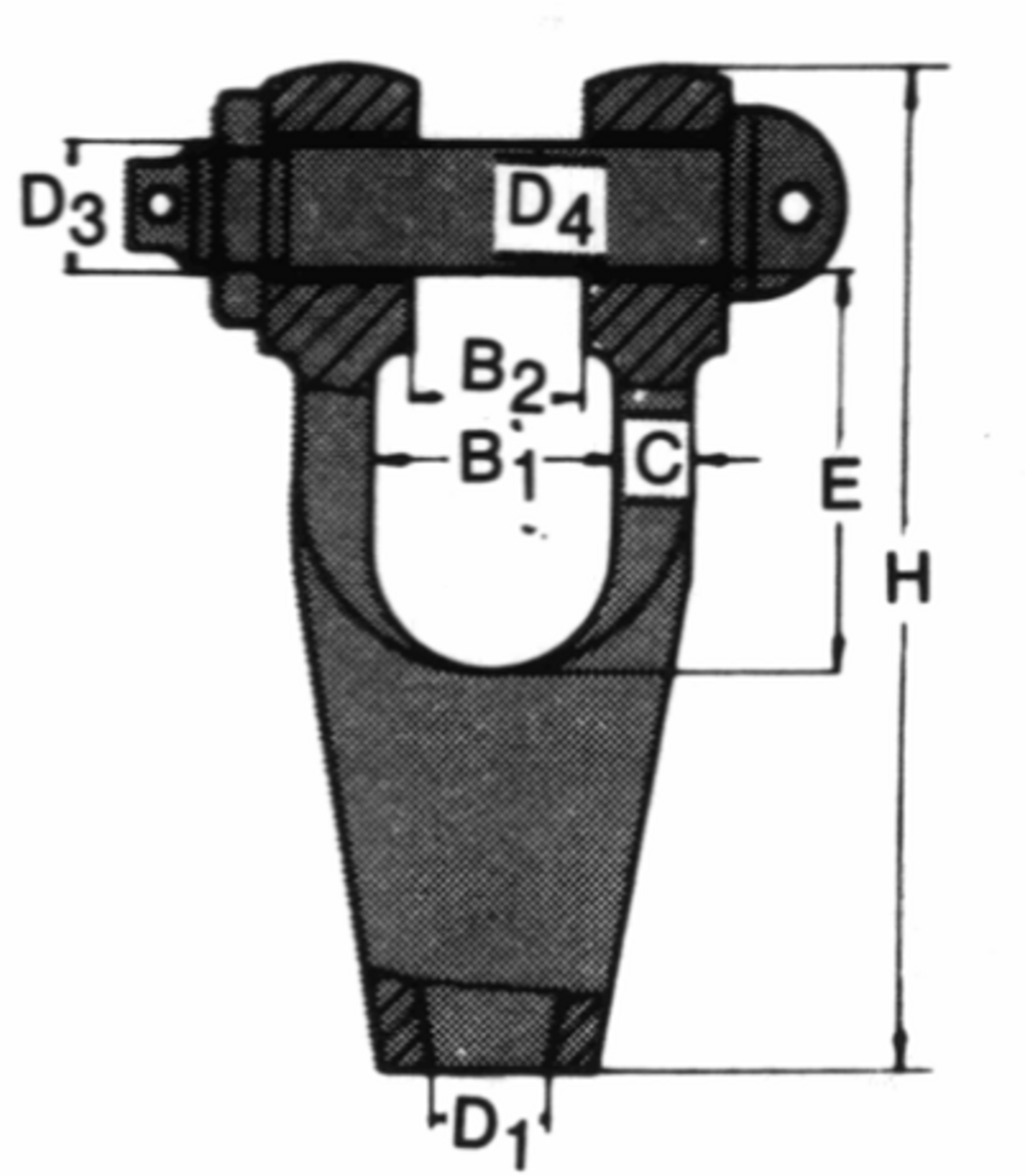

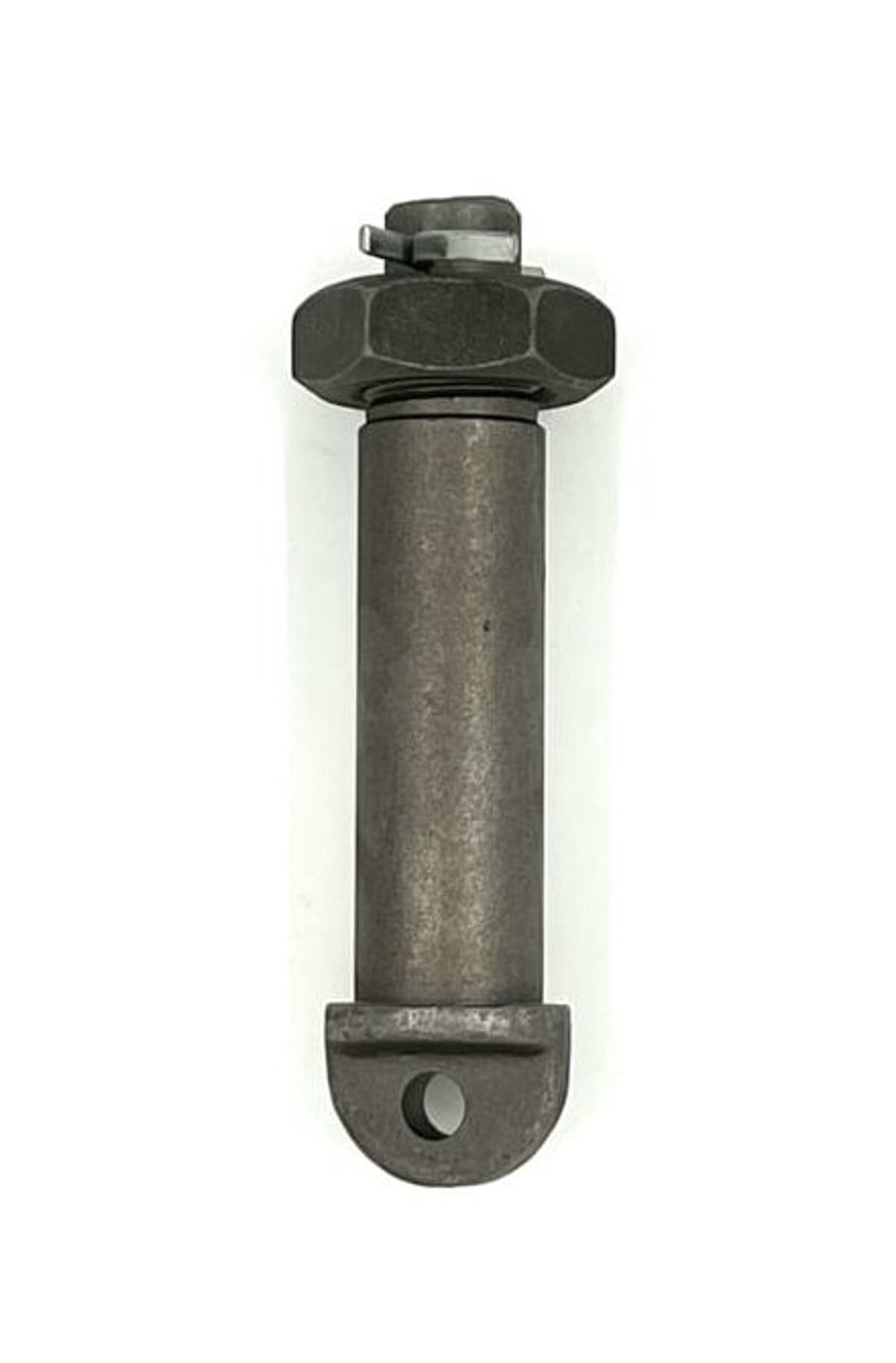

Bolts with nut and split pin, selfcolored suitable for Open Spelter Sockets DIN 83313 Form B

Bolzen Mit Mutter Und Splint
Bolzen Mit Mutter Und Splint S
Bolzen Mit Mutter Und Splint W
Art.-No. Size Rope-Ø mm WLL kg D3
77016 1.6 12-14 1600 M20
77025 2.5 14-18 2500 M24
77030 3.0 16-20 3150 M27
77040 4.0 18-22 4000 M30
77050 5.0 20-24 5000 M36
77060 6.0 22-28 6300 M39
77080 8.0 26-30 8000 M45
77100 10.0 28-34 10000 M48
77120 12.0 32-38 12000 M52
77160 16.0 36-44 16000 M60
77200 20.0 40-50 20000 M68
77250 25.0 44-54 25000 M72x6
77320 32.0 50-62 32000 M80x6
77400 40.0 58-72 40000 M90x6
77500 50.0 62-76 50000 M100x6

Sizes and weights can be changed! We reserve the right to change technical details!
