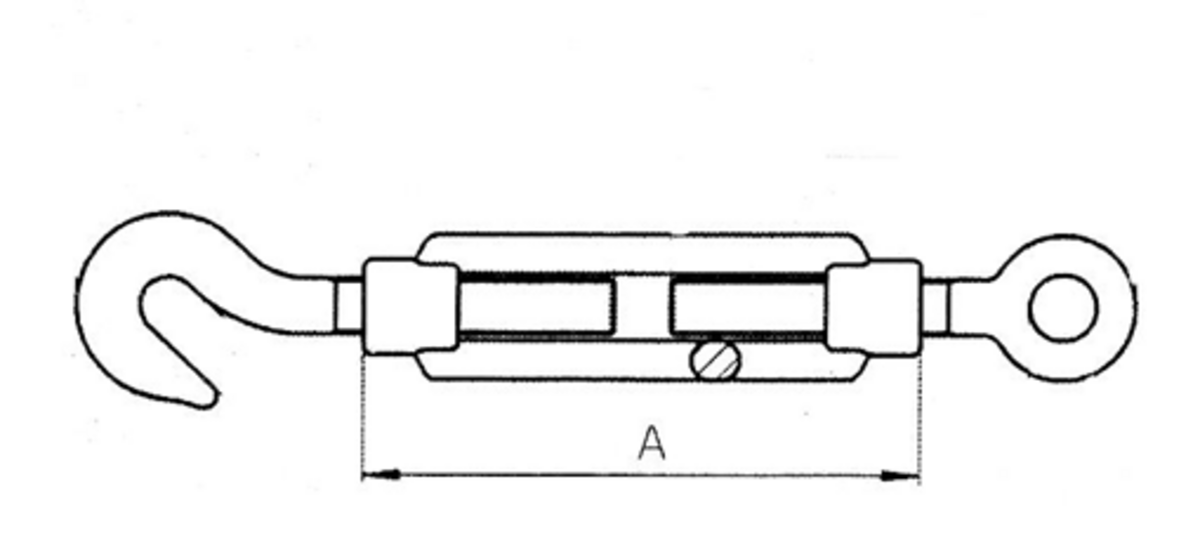

Turnbuckles DIN 1480 (Issue 1975) electro galvanized

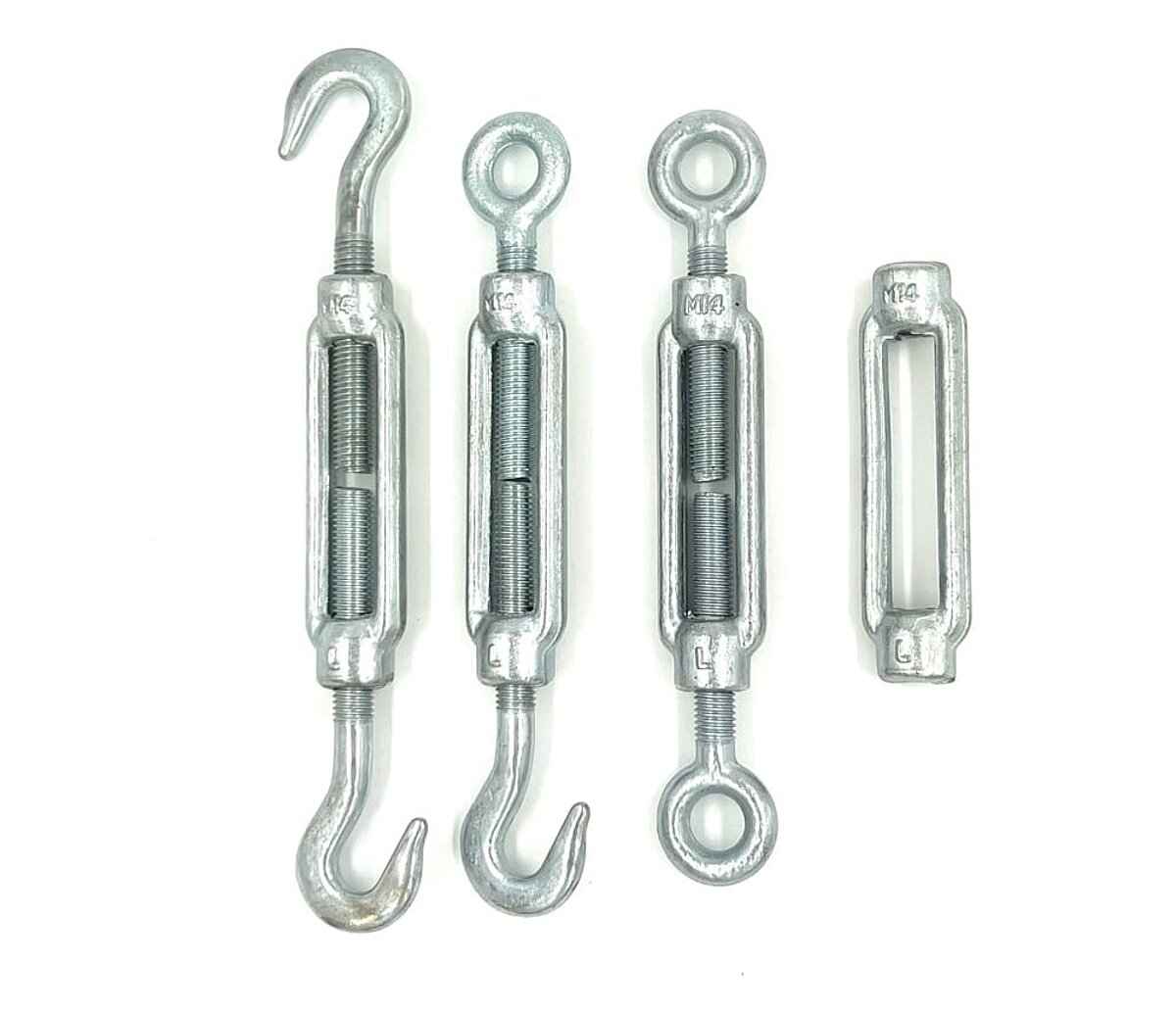

Hook / eye, eye / eye, hook / hook
We also deliver single parts like turnbuckle-frames, Hooks and Eyes.
| Art.-No. | Art.-No. | Art.-No. | Size | Length of frame mm (A) | Weight per 100 pcs. kg |
| Hook/Eye | Eye/Eye | Hook/Hook | |||
| 40006 | 41006 | 42006 | M 6 | 110 | 10.5 |
| 40008 | 41008 | 42008 | M 8 | 110 | 14.5 |
| 40010 | 41010 | 42010 | M 10 | 125 | 28.0 |
| 40012 | 41012 | 42012 | M 12 | 125 | 42.0 |
| 40014 | 41014 | 42014 | M 14 | 140 | 55.0 |
| 40016 | 41016 | 42016 | M 16 | 170 | 100.0 |
| 40020 | 41020 | 42020 | M 20 | 200 | 160.0 |
| 40024 | 41024 | 42024 | M 24 | 255 | 210.0 |
| 40030 | 41030 | 42030 | M 30 | 255 | 390.0 |
| 40036 | 41036 | 42036 | M 36 | 295 | 710.0 |

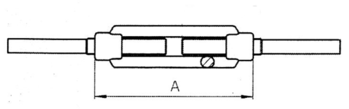

Turnbuckles DIN 1480 (Issue 1975), completely electro galvanized with stub ends
| Art.-No. | Size | Length of frame mm (A) | Weight per 100 pcs. kg |
| 43006 | M 6 | 110 | 10.5 |
| 43008 | M 8 | 110 | 14.5 |
| 43010 | M 10 | 125 | 28.0 |
| 43012 | M 12 | 125 | 42.0 |
| 43014 | M 14 | 140 | 55.0 |
| 43016 | M 16 | 170 | 100.0 |
| 43020 | M 20 | 200 | 160.0 |
| 43024 | M 24 | 255 | 210.0 |
| 43030 | M 30 | 255 | 390.0 |
| 43036 | M 36 | 295 | 710.0 |
Sizes and weights can be changed! We reserve the right to change technical details!
