Stainless steel articles

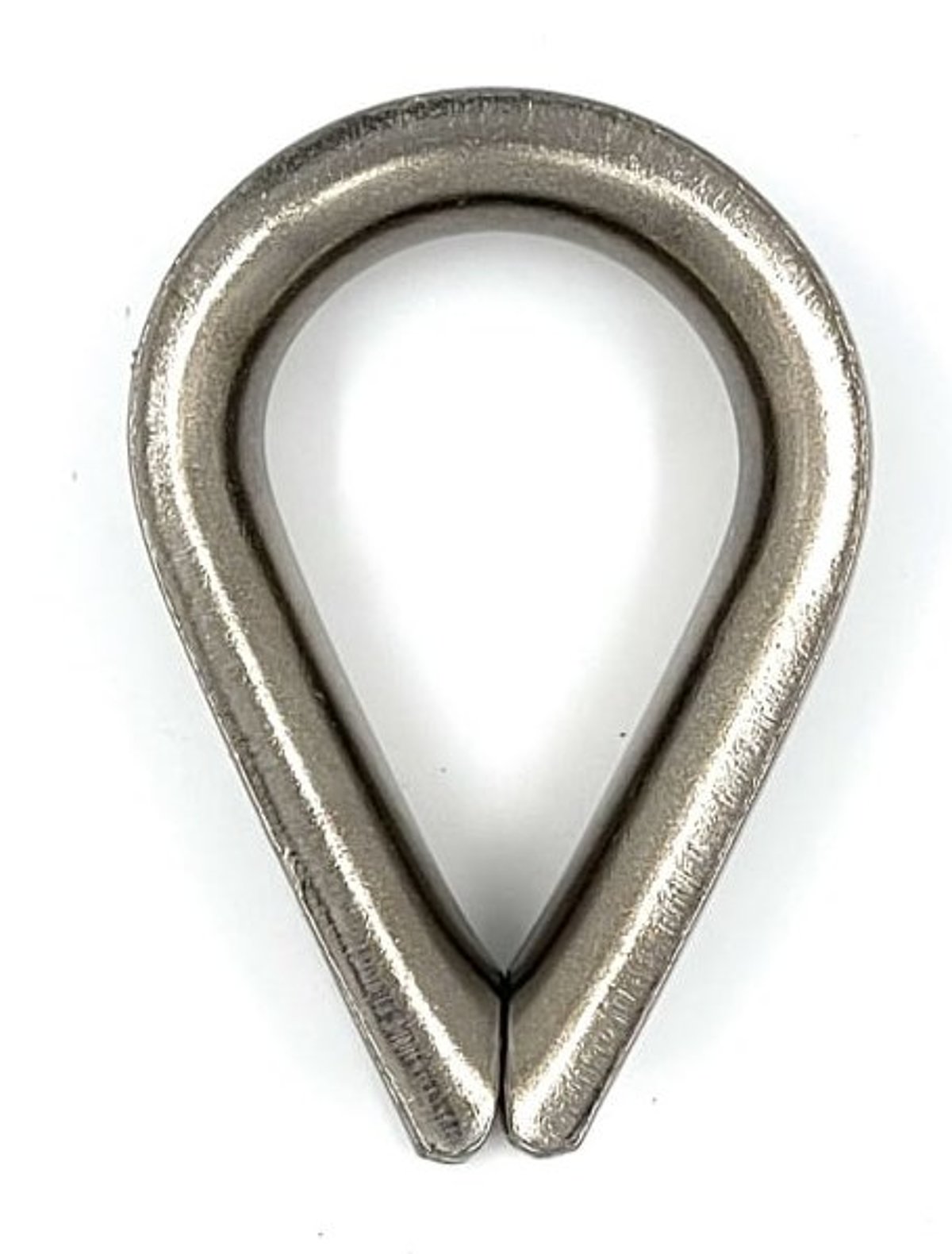

Stainless Steel Thimbles, Material 1.4401, V4A, polished

Our own production

N I R O Edelstahlkauschen Eigenfertigung
N I R O Edelstahlkauschen Eigenfertigung
Art.-No. Groove width mm (RW) inside width mm ( c ) inside length mm (l) Thickness mm (S) Weight per 100 pcs kg
08020 2 8 12 1.0 0.3
08025 2.5 10 16 1.0 0.4
08030 3 10 16 1.0 0.4
08040 4 11 17 1.0 0.5
08050 5 13 20 1.0 0.6
08060 6 16 25 1.2 1.0
08070 7 18 28 1.2 1.2
08080 8 20 32 1.4 1.8
08100 10 26 40 1.9 2.9
08120 12 28 45 2.0 4.6
08140 14 34 56 2.2 7.3
08160 16 37 62 2.5 9.7
08180 18 42 65 2.5 16.5
08200 20 45 78 3.0 21.3
08220 22 50 88 3.0 22.3
08240 24 58 96 4.0 40.5
08260 26 66 105 4.0 49.7
08280 28 75 115 4.0 88.0
08320 32 80 125 6.0 140.0
08360 36 100 160 6.0 185.0
08400 40 115 185 8.0 280.0
08450 45 150 240 10.0 360.0
08500 50 160 265 10.0 545.0
08600 60 170 275 12.0 795.0

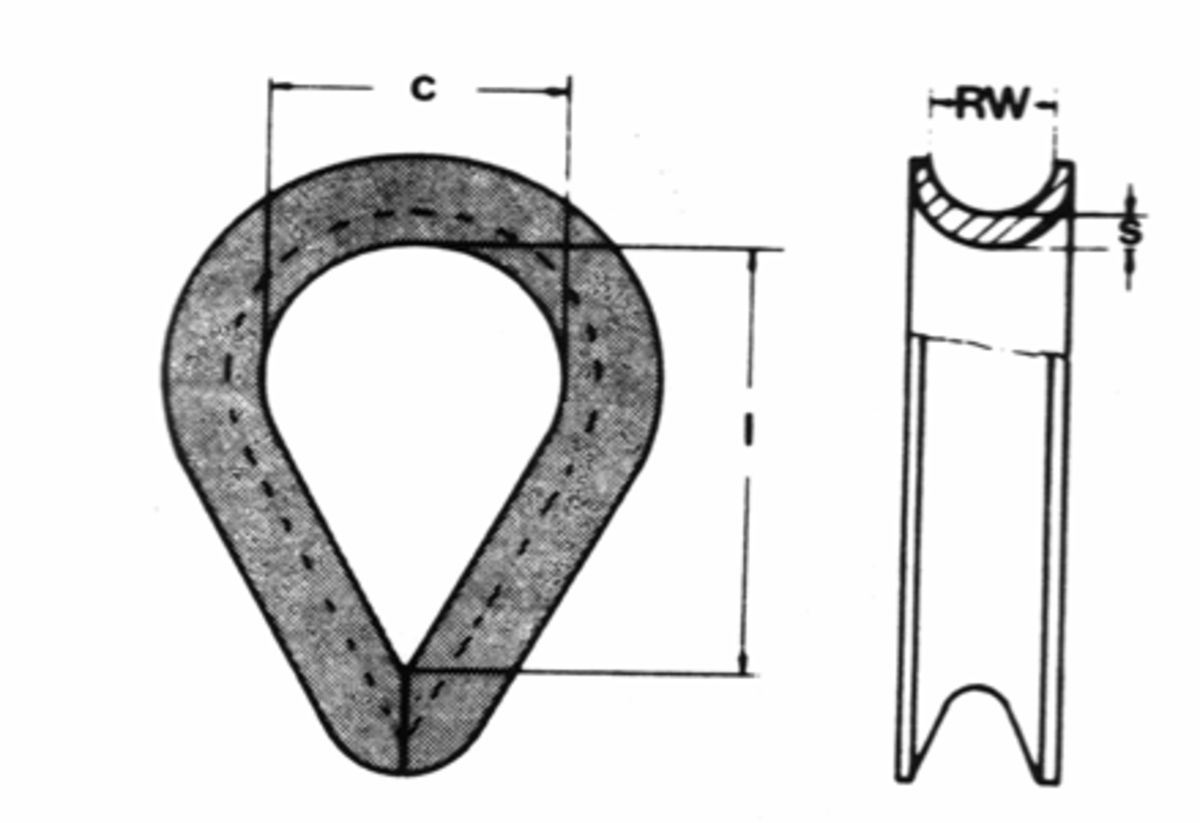

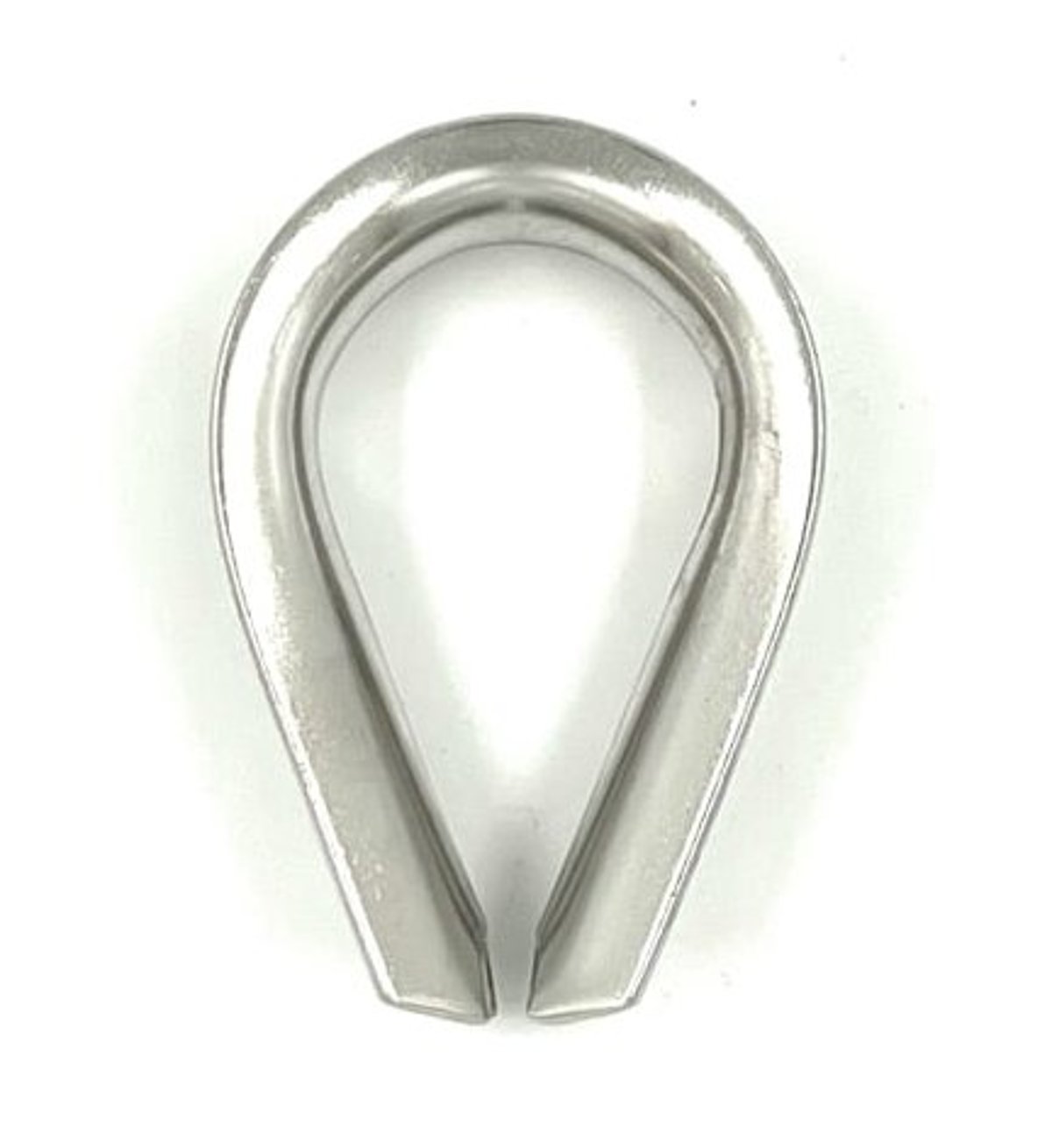

Stainless Steel Thimbles, Material AISI 316, polished

IMPORT-Quality

N I R O Edelstahlkauschen Import
N I R O Edelstahlkauschen Import
Art.-No. Groove width mm (RW) inside width mm ( c ) inside length mm (l) Thickness mm (S) Weight per 100 pcs kg
08103 3 10 14 1.0 0.3
08104 4 11 17 1.0 0.4
08105 5 13 20 1.0 0.5
08106 6 16 25 1.2 0.9
08107 7 18 28 1.2 1.0
08108 8 20 32 1.4 1.6
08110 10 26 40 1.9 2.5
08112 12 28 42 2.0 3.8
08114 14 34 54 2.2 6.8
08116 16 37 60 2.5 8.5
08118 18 42 62 2.5 14.5
08121 20 45 75 3.0 18.3
08122 22 50 88 3.0 19.5
08124 24 58 90 4.0 37.6
08126 26 65 100 4.0 41.0

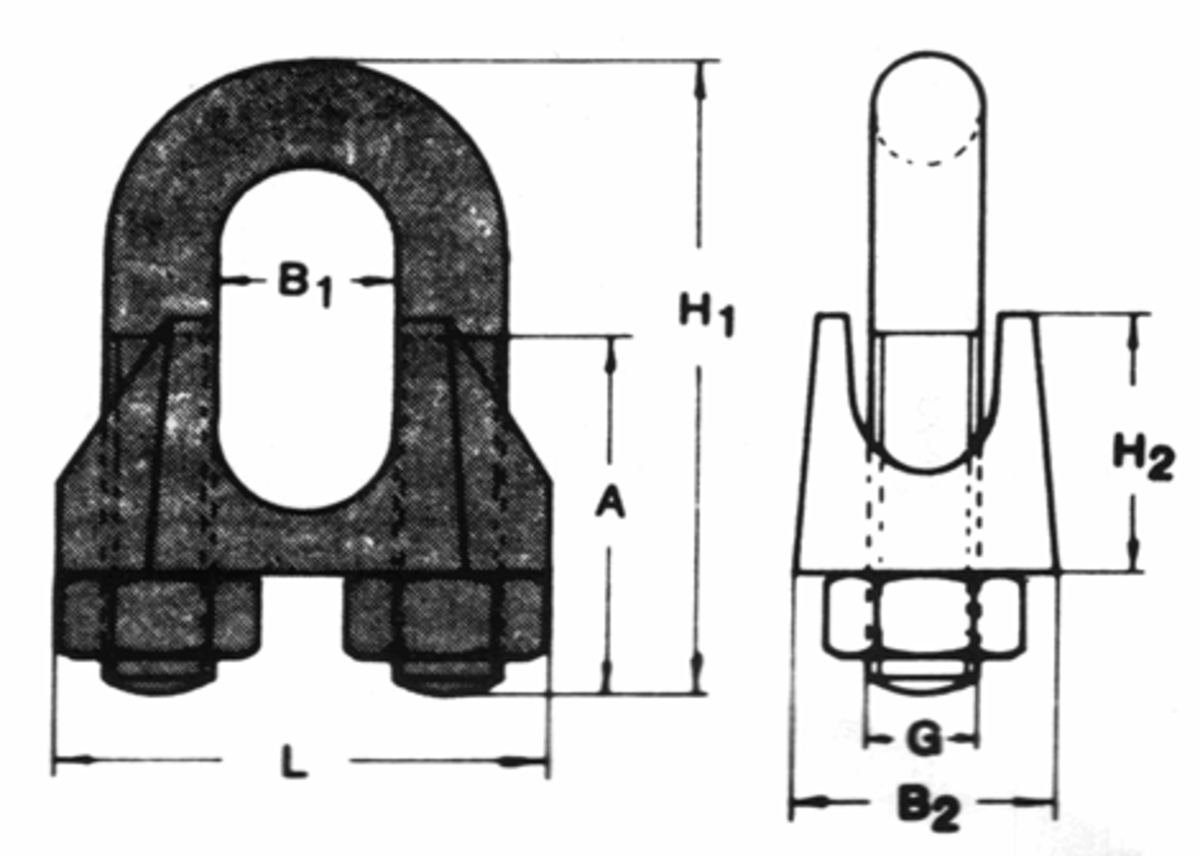

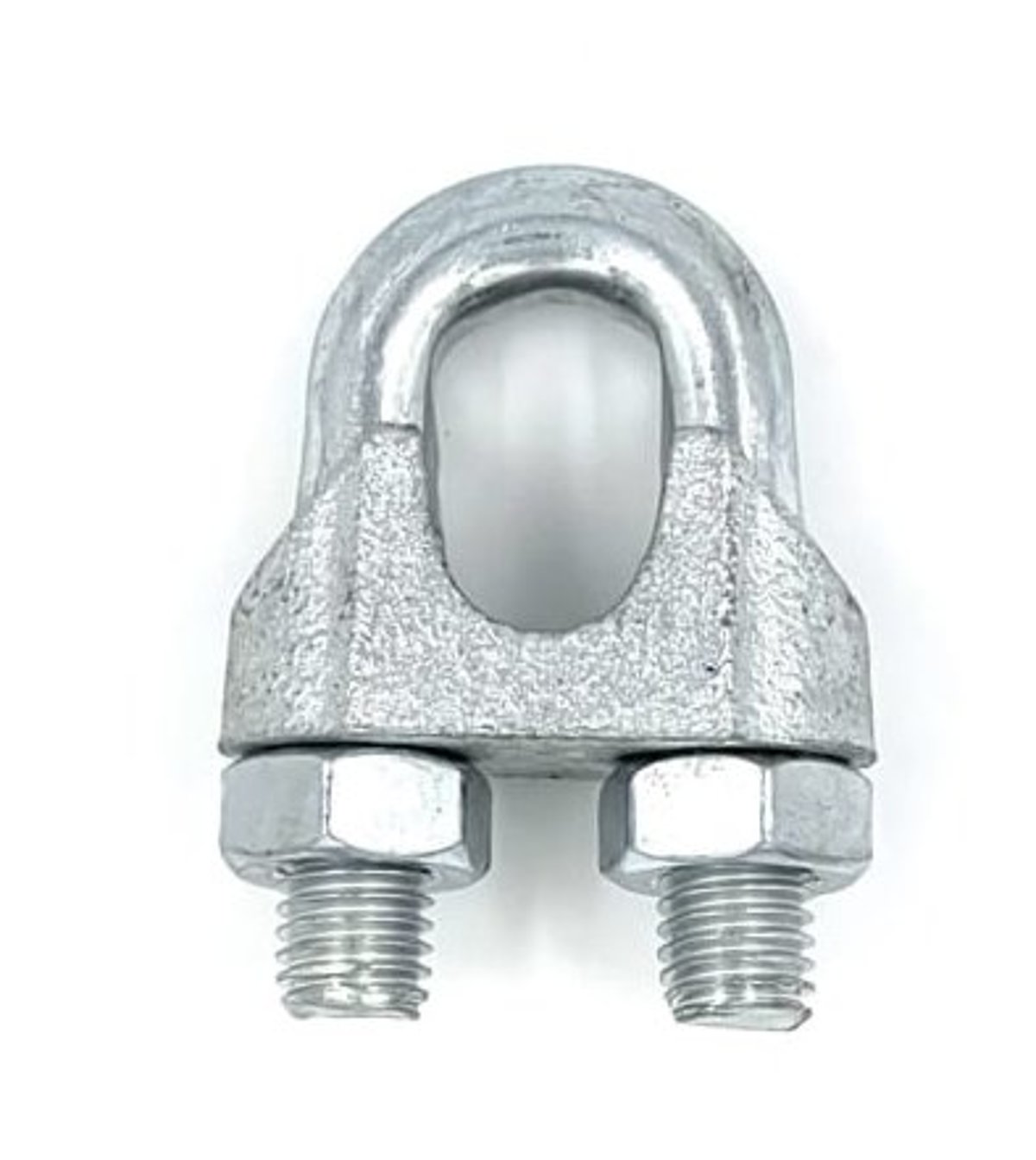

Stainless Steel Wire Rope Clips sim. DIN 741, Material AISI 316, polished

IMPORT-Quality

N I R O Drahtseilklemmen Ähnli. D I N 741
N I R O Drahtseilklemmen Ähnl. D I N 741
Art.-No. Size Rope-Ø mm Weight per 100 pcs kg
81002 2 2 1.2
81003 3 3 1.4
81004 4 4 1.5
81005 5 5 1.6
81006 6 6 2.1
81008 8 8 4.1
81010 10 10 6.8
81130 13 13 13.0
81160 16 16 21.0
81190 19 19 28.0
81220 22 22 40.0
81260 26 26 44.0

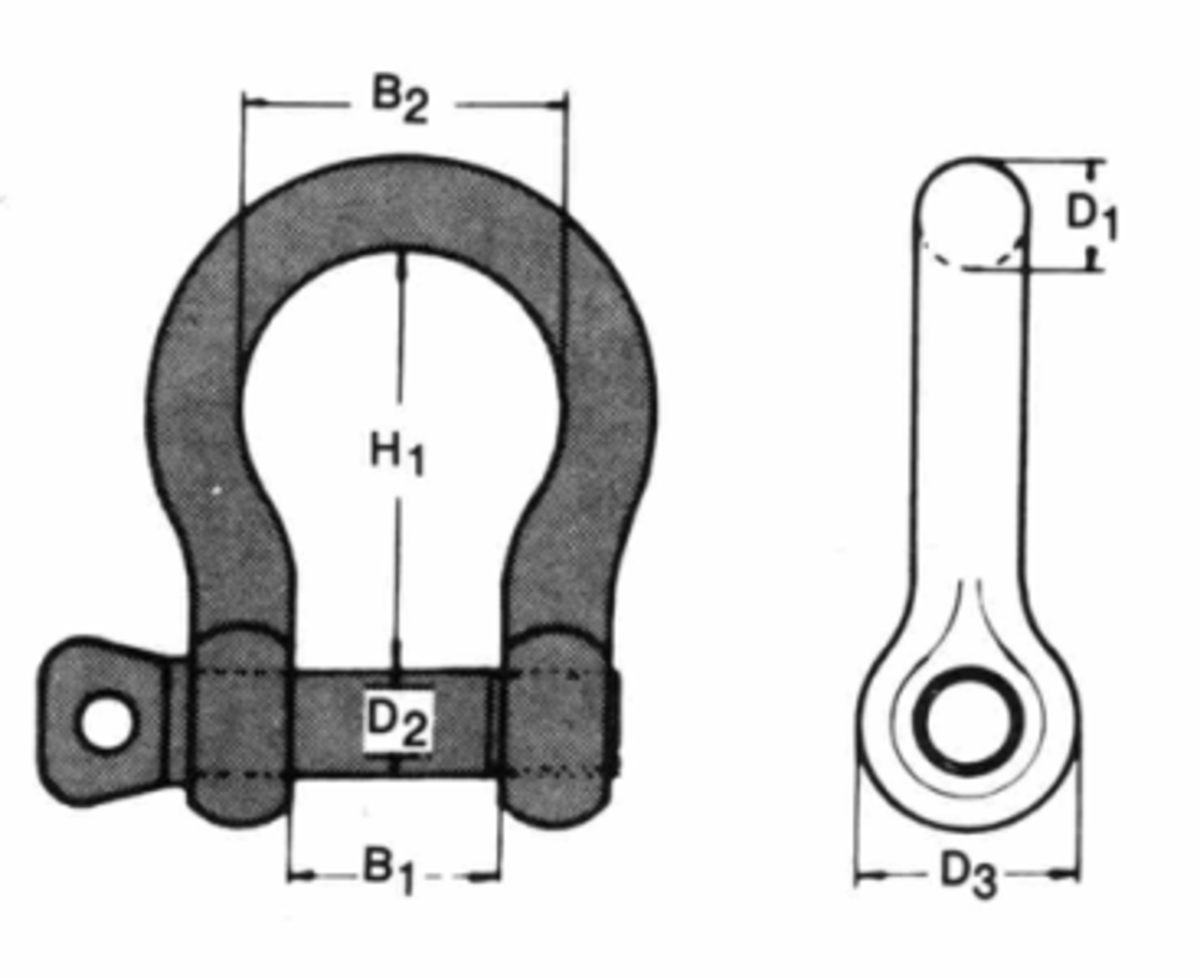

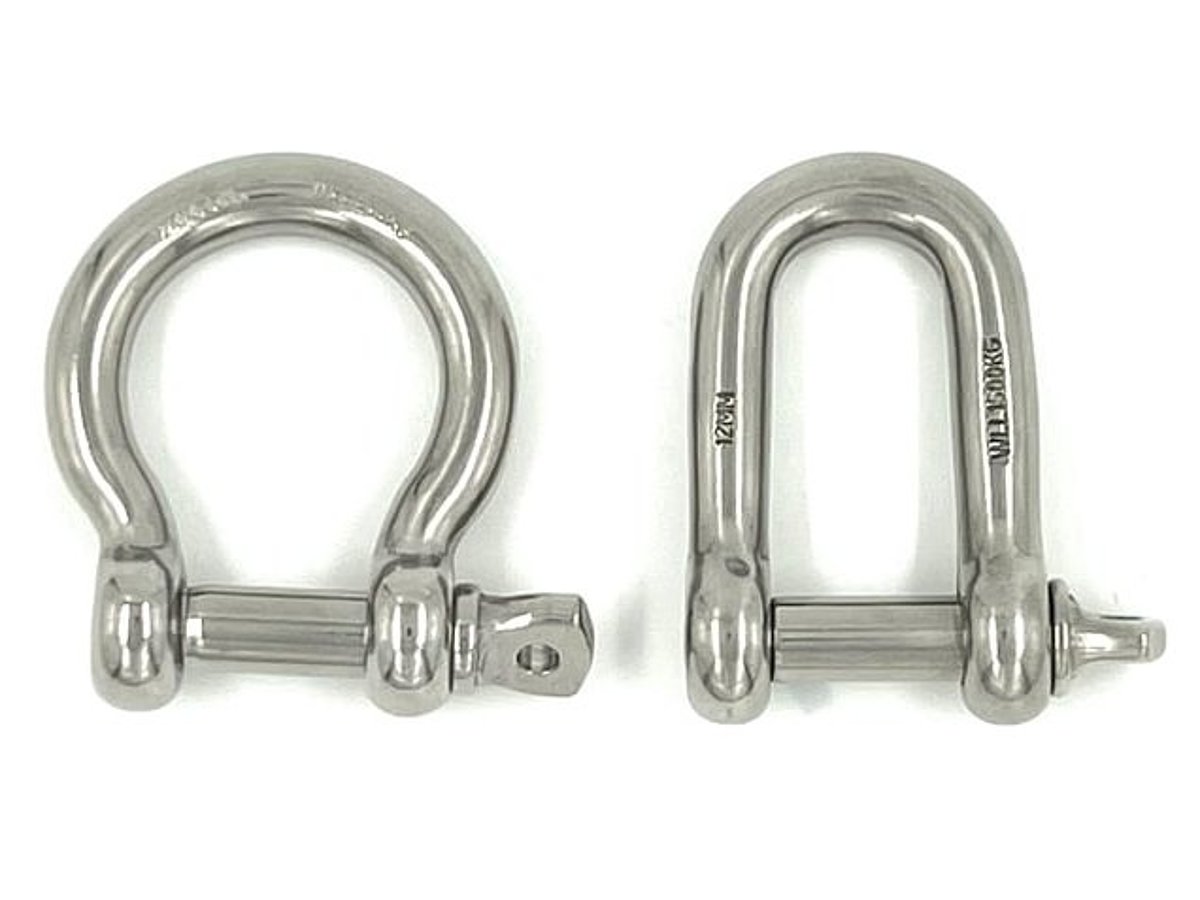

Stainless Steel Shackles, Material AISI 316, polished

IMPORT-Quality, DEE-Type or BOW-Type

N I R O Schäkel
N I R O Schäkel Gerade Form
N I R O Schäkel Geschweifte Form

Wir liefern Niro-Schäkel auch in weiteren Größen und Ausführungen.

Art.-No. D1 Body-Ø mm D2 Bolt-Ø mm B1 inside width mm H1 inside length mm WLL kg marked Weight per 100 pcs kg
DEE-Type
85004 4 4 8 16 160 1.2
85005 5 5 10 20 250 1.6
85006 6 6 12 24 340 2.4
85008 8 8 16 32 720 5.6
85010 10 10 20 40 1000 13.0
85012 12 12 24 48 1500 20.0
85016 16 16 32 64 2750 48.0
85019 19 19 38 76 3750 84.0
85022 22 22 44 88 4750 127.0
85025 25 25 50 100 5750 184.0
BOW-Type
86004 4 4 8 16 160 1.2
86005 5 5 10 20 250 1.8
86006 6 6 12 24 340 2.8
86008 8 8 16 32 720 6.4
86010 10 10 20 40 1000 15.0
86012 12 12 24 48 1500 22.0
86016 16 16 32 64 2750 55.0
86019 19 19 38 76 3750 97.0
86022 22 22 44 88 4750 146.0
86025 25 25 50 100 5750 211.0

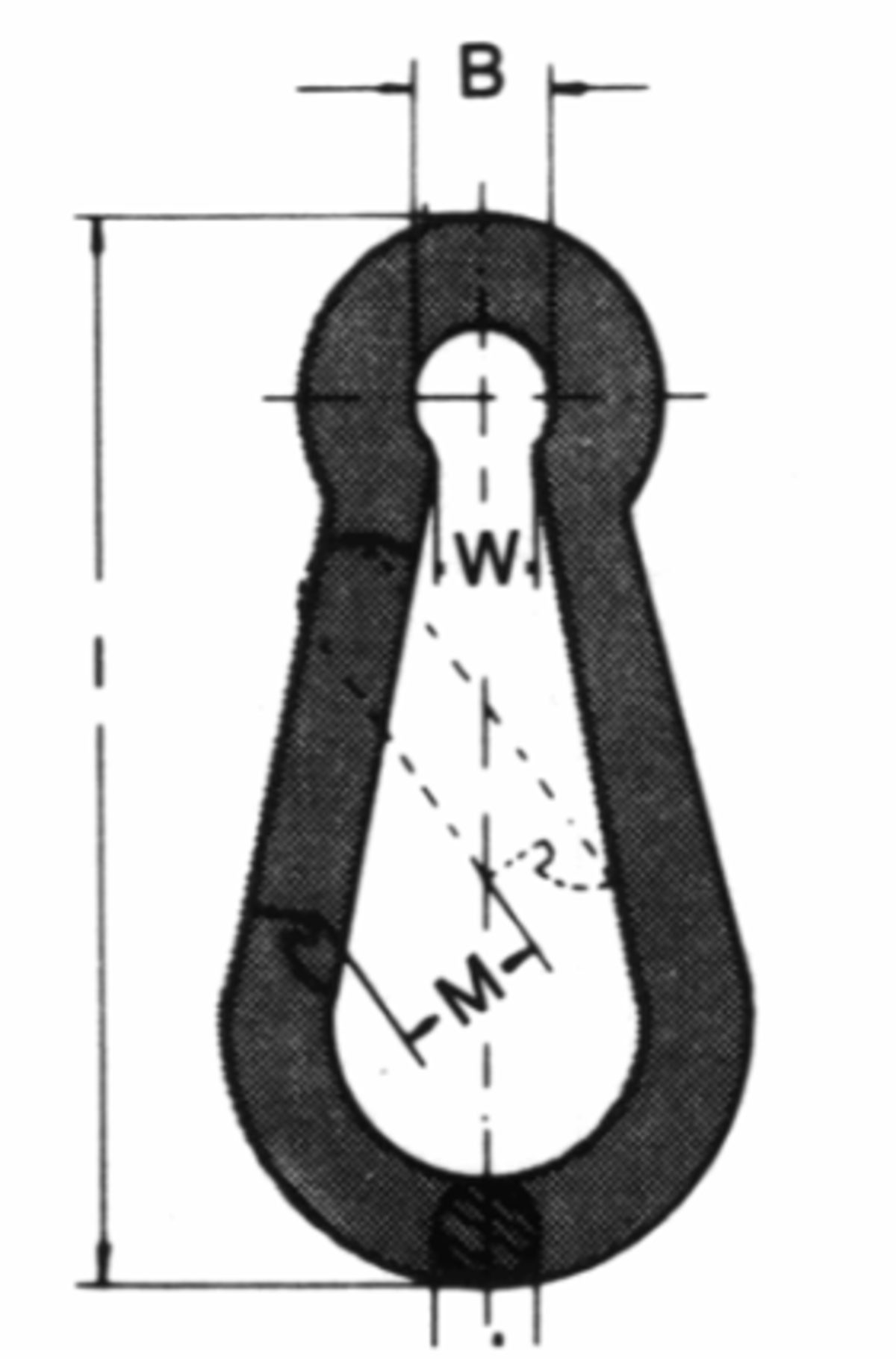

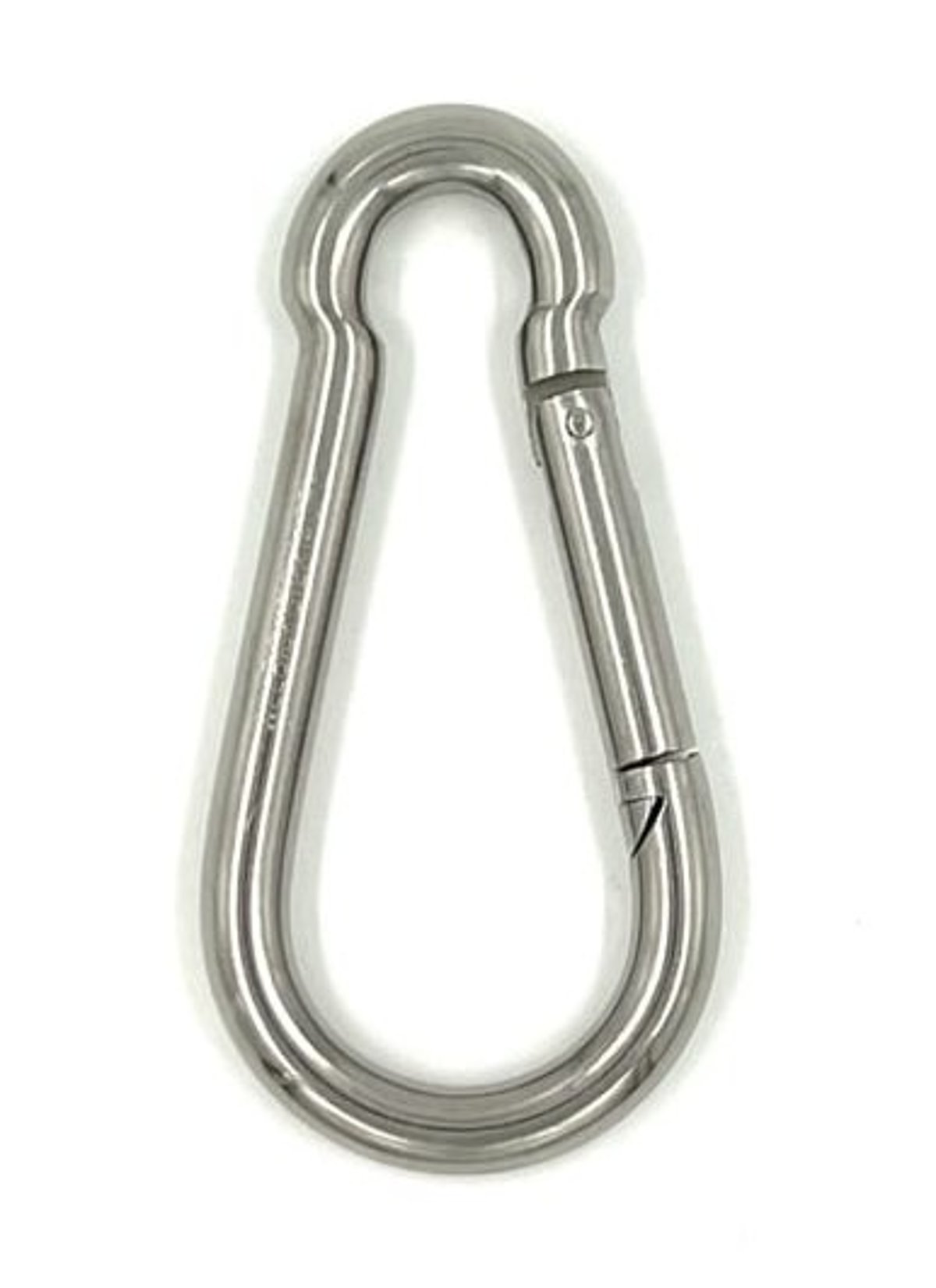

Stainless Steel Snap Hook DIN 5299 Form C AISI 316, polished

IMPORT-Quality

N I R O Karabinerhaken
N I R O Karabinerhaken
Art.-No. Size Material-Ø mm Total Length mm B mm M mm W mm WLL kg Weight per 100 pcs kg
84104 40 x 4 4 40 6 6 4 10 1.0
84105 50 x 5 5 50 8 7 4 120 1.3
84106 60 x 6 6 60 9 8 6 120 2.7
84107 70 x 7 7 70 10 8 8 180 4.3
84108 80 x 8 8 80 12 10 8 230 6.4
84109 90 x 9 9 90 12 10 9 250 8.8
84110 100 x 10 10 100 15 11 10 350 12.6
84111 120 x 11 11 120 18 16 11 450 19.0
84112 140 x 12 12 140 20 19 14 510 26.0
84113 160 x 13 13 160 22 23 16 600 35.0

Sizes and weights can be changed! We reserve the right to change technical details!
