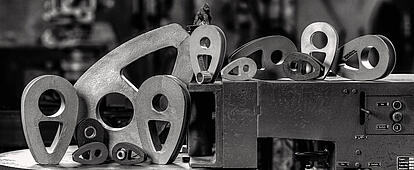

Thimbles - Friedrich Höppe GmbH

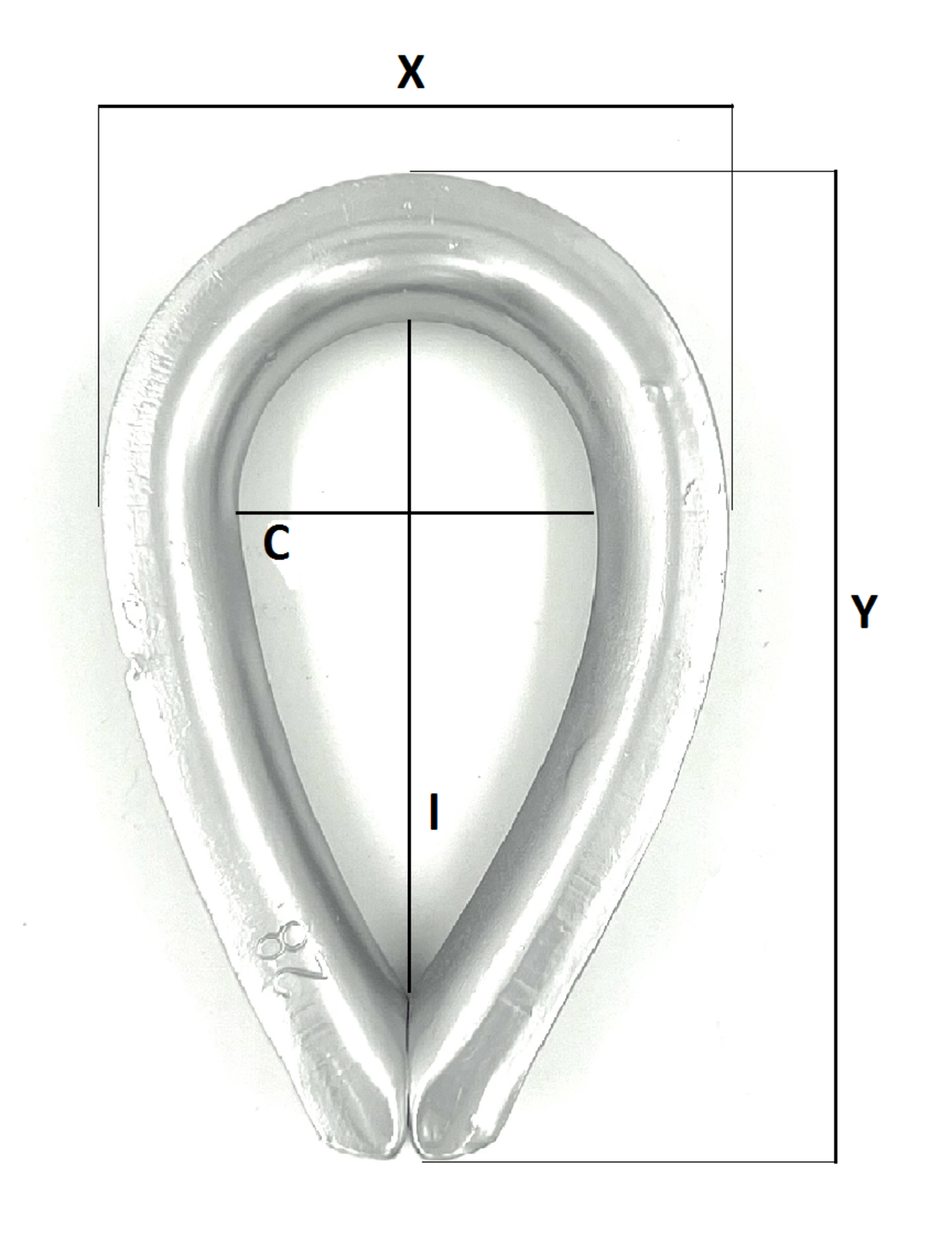

Kauschen E N 13411 1 Ehemald D I N 3090 Seitl

Our own production (Art. 05040 bis Art. 05060 electro galvanized, from Art. 05080 hot dipped galvanized)
Sim. To EN 13411-1 with the following factors: RW = 1,1 x D C = 2,5 x D I = 2,0 x C
Other sizes on request.

Art.-No.	Rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	outer width mm (F)	thickness mm (S)	whole width mm (X)	whole length mm (Y)	weight per 100 pcs. kg
05040	4	5	10	20	8	2.1	25	35	1.4
05060	6	7	15	30	10	2.6	33	50	3.0
05080	8	9	20	40	13	4.0	43	68	7.1
05100	10	11	25	50	15	5.0	47	77	17.0
05120	12	13	30	60	19	6.0	63	100	24.0
05140	14	16	35	70	22	8.0	70	110	36.0
05160	16	18	40	80	25	8.0	80	125	50.0
05180	18	20	45	90	27	9.0	90	142	62.0
05200	20	22	50	100	30	10.0	102	155	90.0
05220	22	24	55	110	33	10.0	107	165	100.0
05240	24	26	60	120	35	10.0	120	180	130.0
05260	26	29	65	130	36	12.0	122	190	220.0
05280	28	31	70	140	37	12.0	128	197	240.0
05320	32	35	80	160	43	15.0	145	225	270.0
05360	36	40	90	180	60	15.0	170	250	430.0
05400	40	44	100	200	66	20.0	190	290	570.0
05440	44	48	110	220	72	20.0	205	315	850.0
05480	48	53	120	240	77	20.0	220	350	1120.0
05520	52	57	130	260	88	25.0	235	380	1530.0
05560	56	62	140	280	95	25.0	270	405	2148.0
05600	60	66	150	300	105	25.0	285	430	2300.0
05640	64	70	160	320	110	30.0	310	485	3500.0

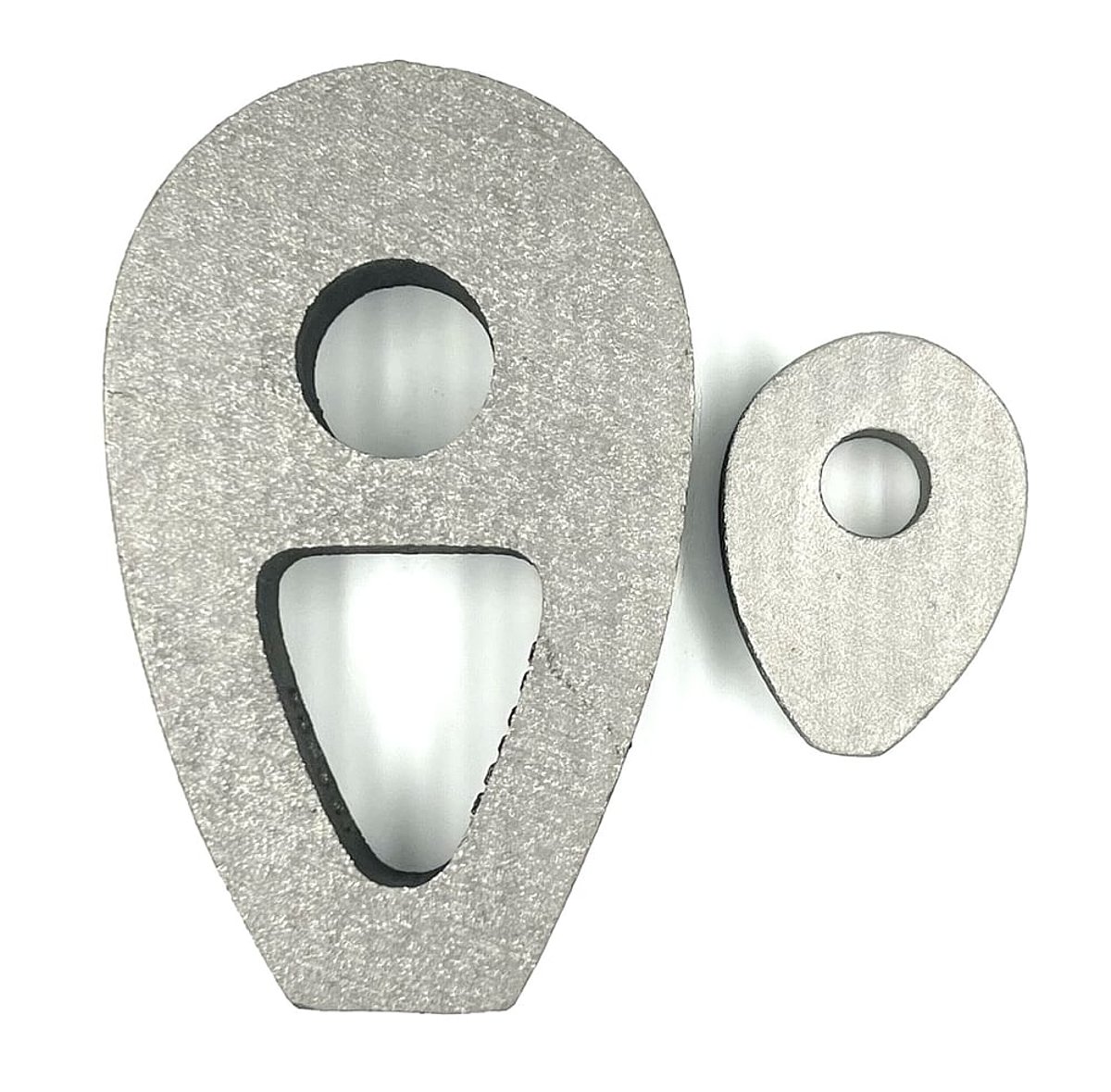

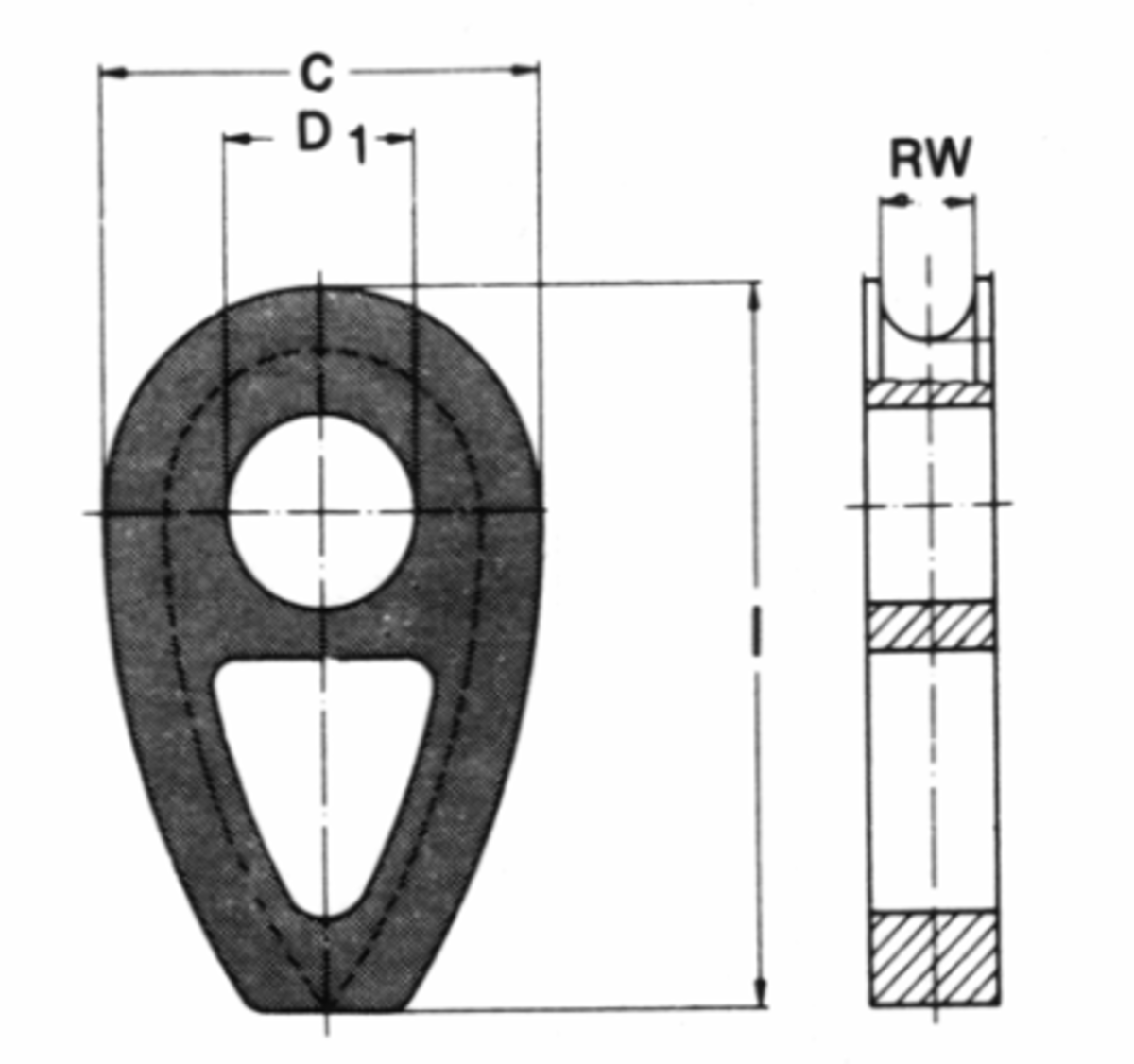

Vollkausche D I N 3091 (e N 13411 9) Zeichnung

Art. 06080, 06100, 06120 and 06140 acc. DIN 3091 issue 11-1976 (old standard)
From Art. 06160 all sizes acc. to DIN 3091 issue 12-1988

* Ng 72 standard hole against the DIN 140 mm (DIN Standard 104 mm)
We can driill the holes with tolerances or bring in bronce bushings acc. to your special needs.

Art.-No.	Art.-No.	Rope-Ø mm	groove width (RW) mm	standard hole (D1) mm	possible drilled hole (D1) mm	outer width ( C ) mm	outer length (l) mm	weight per 100 pcs. (kg)
selfcolored	hot dipped galvanized
06080	06085	8	9	14	17-20	40	56	18.1
06100	06105	10	11	18	21-25	50	70	31.8
06120	06125	12	13	21	24-30	60	84	51.5
06140	06145	14	16	25	29-35	70	98	79.9
06160	06165	16	18	28	32-40	80	130	89.5
06180	06185	18	20	31	35-45	90	145	121.1
06200	06205	20	22	35	40-50	100	161	161.0
06220	06225	22	24	38	43-55	110	177	211.0
06240	06245	24	26	41	46-60	120	193	271.0
06260	06265	26	29	44	49-65	130	209	355.0
06280	06285	28	31	47	52-70	140	224	420.0
06320	06325	32	35	53	58-80	160	256	630.0
06360	06365	36	40	59	65-90	180	288	884.0
06400	06405	40	44	65	71-100	200	320	1100.0
06440	06445	44	48	70	76-110	220	352	1500.0
06480	06485	48	53	76	82-120	240	384	2000.0
06520	06525	52	57	81	87-130	260	416	2500.0
06560	06565	56	62	86	92-140	280	448	3200.0
06640	06645	64	70	95	103-160	320	512	4600.0
06720	06725	72	79	140*	145-180	360	576	6600.0

Our own production

Kausche D I N 6899 Form B F Eigenfertigung

Kauschen D I N 6899 Form B F Eigenfertigung

Art. 02030 to Art. 02070 electro galvanized, from Art. 02080 hot dipped galvanized

Art.-No.	Rope-Ø	Groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
02020	1.5	2	8	12	1.0	0.3
02030	2.5	3	12	19	1.2	0.5
02040	3.5	4	13	21	1.2	0.8
02050	4	5	14	23	1.7	1.0
02060	5	6	16	25	2.2	1.6
02070	6	7	18	28	2.2	1.9
02081	7	8	20	32	2.0	3.0
02101	9	10	24	38	2.0	4.7
02121	11	12	28	45	2.5	6.8
02131	--	13	28	45	2.5	8.5
02141	13	14	32	51	2.5	10.0
02161	15	16	36	58	3.0	14.5
02181	16	18	40	64	4.0	19.0
02201	18	20	45	72	4.0	29.0
02221	20	22	50	80	5.0	32.0
02241	22	24	56	90	5.0	50.0
02261	24	26	62	99	5.0	59.0
02281	26	28	70	112	5.0	82.0
02301	28	30	75	120	6.0	100.0
02321	30	32	80	128	6.0	130.0
02341	32	34	95	152	6.0	160.0
02361	34	36	100	160	6.0	170.0
02381	36	38	110	176	6.0	180.0
02401	38	40	115	184	8.0	275.0
02421	40	42	120	192	8.0	300.0
02451	42	45	150	240	10.0	350.0
03500	47	50	160	265	12.0	535.0
03600	57	60	170	275	12.0	790.0
03650	63	65	180	300	13.0	830.0
03750	72	75	200	350	15.0	1200.0
03900	87	90	210	370	18.0	2600.0
03999	97	100	220	380	20.0	3050.0

Our own production

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
02033	2.5	3	12	19	1.2	0.5
02043	3.5	4	13	21	1.2	0.8
02053	4	5	14	23	1.7	1.0
02063	5	6	16	25	2.2	1.6
02073	6	7	18	28	2.2	1.9
02083	7	8	20	32	2.0	3.0
02103	9	10	24	38	2.0	4.7
02123	11	12	28	45	2.5	6.8

IMPORT-Quality

Kauschen D I N 6899 Form B F I M P O R T

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
02080	7	8	20	32	2.7	3.0
02100	9	10	24	38	2.9	4.7
02120	11	12	28	45	3.2	6.8
02130	--	13	28	45	3.5	8.5
02140	13	14	32	51	3.5	10.0
02160	15	16	36	58	3.8	14.5
02170	--	17	36	58	4.2	18.0
02180	16	18	40	64	4.2	19.0
02200	18	20	45	72	5.2	29.0
02220	20	22	50	80	5.2	32.0
02240	22	24	56	90	6.2	50.0
02260	24	26	62	99	6.5	59.0
02280	26	28	70	112	7.3	82.0
02300	28	30	75	120	8.0	100.0
02320	30	32	80	128	8.0	130.0
02340	32	34	95	152	8.0	160.0
02360	34	36	100	160	8.0	170.0

Our own production

Thimbles DIN 6899 Form BF (issued January 1988) galvanized
Our own production with welded filled plate

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
02165	15	16	36	58	3.0	14.5
02185	16	18	40	64	4.0	19.0
02205	18	20	45	72	4.0	29.0
02225	20	22	50	80	5.0	32.0
02245	22	24	56	90	5.0	50.0
02265	24	26	62	99	5.0	59.0
02285	26	28	70	112	5.0	82.0
02305	28	30	75	120	6.0	100.0
02325	30	32	80	128	6.0	130.0
02345	32	34	95	152	6.0	160.0
02365	34	36	100	160	6.0	170.0
02385	36	38	110	176	6.0	180.0
02405	38	40	115	184	8.0	275.0
02425	40	42	120	192	8.0	300.0
02455	42	45	150	240	10.0	350.0

Our own production

Art. 01025 to Art. 01100 electro galvanized, from Art. 01110 hot dipped galvanized

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
01025	2	2.5	9	20.0	0.50	0.13
01030	2.5	3	10	21.5	0.50	0.15
01035	3	3.5	11	23.5	0.75	0.21
01040	3.5	4	12	26.5	0.75	0.31
01050	4	5	13	28.5	0.75	0.39
01060	5	6	14	30.0	1.00	0.66
01070	6	7	15	33.0	1.00	0.84
01080	7	8	16	35.0	1.00	1.22
01090	8	9	18	39.0	1.25	1.88
01100	9	10	20	43.0	1.25	2.30
01110	10	11	22	47.5	1.50	3.56
01120	11	12	24	51.5	1.50	3.70
01130	12	13	26	56.5	1.75	5.13
01140	13	14	28	61.0	2.00	7.21
01160	15	16	32	69.5	2.50	11.03
01180	16	18	35	78.0	3.00	16.80
01200	18	20	40	86.0	3.50	24.40
01220	20	22	44	95.0	4.00	34.30
01260	24/26	26	48	100.0	4.00	43.00

Our own production

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
07110	0.6	11	28	50	4	10
07130	1.0	13	32	60	5	18
07150	1.6	15	38	68	6	24
07170	2.0	17	42	76	7	38
07190	2.5	19	48	85	8	50
07210	3.0	21	53	95	9	70
07240	4.0	24	60	110	10	110
07280	5.0	28	70	125	10	141
07300	6.0	30	75	135	12	254
07340	8.0	34	85	150	13	282
07380	10.0	38	95	170	15	418
07420	12.0	42	105	190	16	513
07460	16.0	46	115	205	16	550
07500	20.0	50	125	225	18	930
07560	25.0	56	140	250	20	1303
07620	31.0	62	155	280	21	1363
07680	40.0	68	170	306	23	1930
07750	45.0	75	185	340	25	2460

Our own production

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
11090	8.0	9	50	70	4	12
11140	12.0	14	50	70	6	22
11180	16.0	18	50	70	8	30

Our own production

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
12110	70 S	11	40	65	2	9
12120	70 D	12	24	48	3	8

Our own production

Art.-No.	rope-Ø	groove width mm (RW)	inside width mm ( c )	inside length mm (l)	Thickness mm (S)	weight per 100 pcs kg
13120	12	12	22	40	1.0	1.0
13150	15	15	24	40	1.5	1.5

Our own production

Art.-No.	groove width mm	inside width mm	Thickness mm	weight per 100 pcs kg
14080	8	13	1.5	1
14100	10	18	1.5	2
14120	12	20	2.0	3
14130	13	24	2.0	3
14135	13	35	2.0	4
14140	14	25	2.0	4
14148	14	28	2.0	5
14145	14	35	2.0	5
14150	15	30	2.0	5
14160	16	35	2.5	7
14180	18	40	2.5	8
14200	20	42	2.5	9
14220	22	45	2.5	11
14250	25	52	3.0	25

Our own production

Art.-No.	groove width mm	inside width mm	Thickness mm	weight per 100 pcs kg
15645	16	45	6.0	35
15650	16	50	6.0	41
15655	16	55	6.0	44
15660	16	60	6.0	49

Our own production

Art.-No.	groove width mm	inside width mm	inside length mm (l)	Thickness mm (S)	galvanized
18071	7	32	50	2.15	electro galv.
18081	8	25	40	4.0	hot dipped galv.
18082	8	30	45	4.0	hot dipped galv.
18083	8	35	58	4.0	hot dipped galv.
18084	8	40	65	4.0	hot dipped galv.
18101	10	30	51	4.0	hot dipped galv.
18102	10	35	56	4.0	hot dipped galv.
18103	10	40	65	4.0	hot dipped galv.
18121	12	35	55	5.0	hot dipped galv.
18122	12	40	66	5.0	hot dipped galv.
18123	12	45	72	5.0	hot dipped galv.
18124	12	50	80	3.1	hot dipped galv.
18132	13	40	65	3.1	hot dipped galv.
18141	14	40	66	6.0	hot dipped galv.
18142	14	45	68	6.0	hot dipped galv.
18143	14	50	68	6.0	hot dipped galv.
18161	16	40	63	4.0	hot dipped galv.
18162	16	50	78	6.0	hot dipped galv.
18163	16	60	93	6.0	hot dipped galv.
18181	18	50	76	4.0	hot dipped galv.
18184	18	55	84	4	hot dipped galv.
18182	18	60	93	4	hot dipped galv.
18183	18	65	110	5	hot dipped galv.
18202	20	65	104	8	hot dipped galv.
18203	20	70	104	9	hot dipped galv.
18222	22	70	104	9	hot dipped galv.
18223	22	80	120	9	hot dipped galv.
18242	24	80	120	9	hot dipped galv.

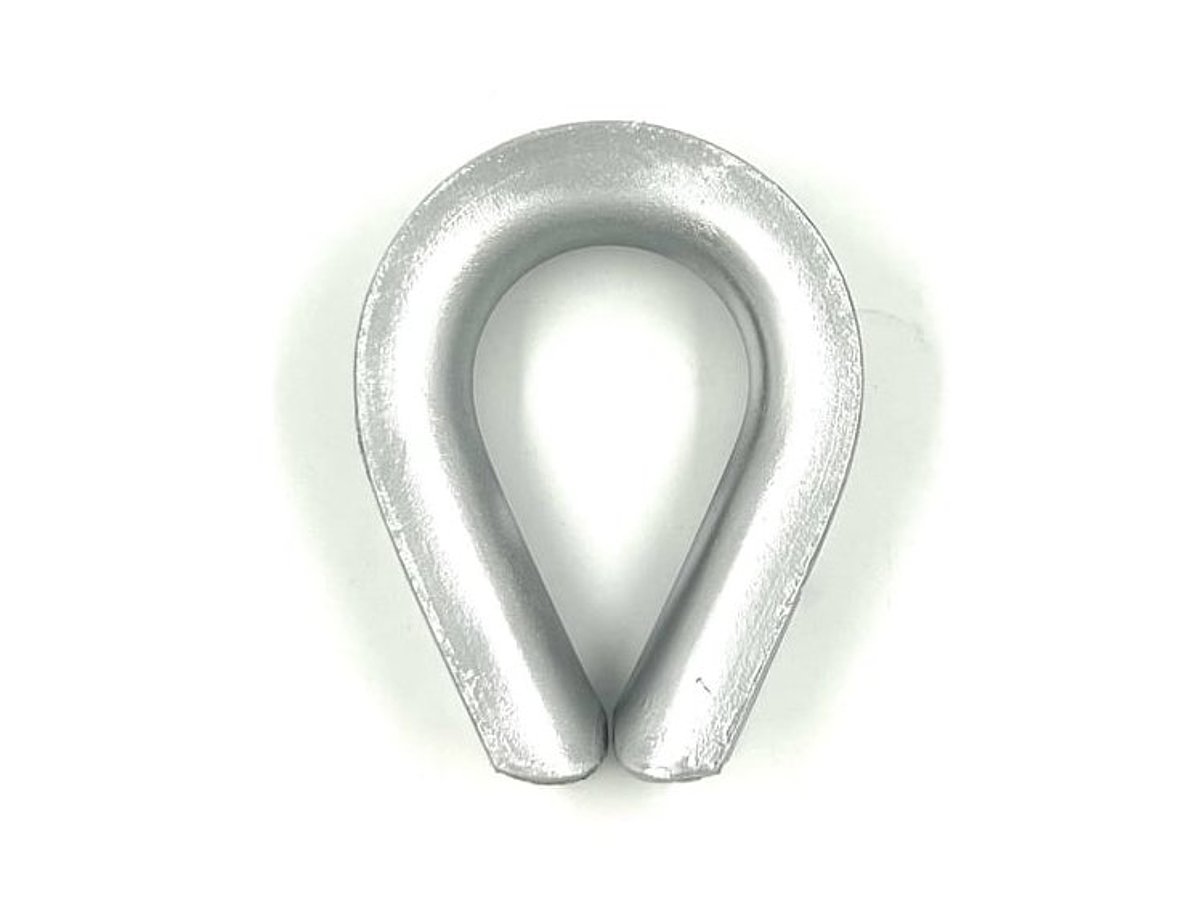

USA-Thimble

US-Fed.-Spec. FF-T-276 Type III, hot dipped galvanized

Art.-No	Size in Inch	Groove width mm	Length in Inch	outside width in Inch	inside length in Inch	inside width in Inch	Thickness in Inch	Weight per 100 pcs. kg
16070	1/4"	7	2.3/16"	1.1/2"	1.5/8"	7/8"	1/16"	3.4
16090	5/16"	9	2.1/2"	1.13/16"	1.7/8"	1.1/16"	5/64"	6.3
16100	3/8"	10	2.7/8"	2.1/8"	2.1/8"	1.1/8"	7/64"	11.3
16130	7/16"	13	3.1/4"	2.3/8"	2.3/8"	1.1/4"	1/8"	16.2
16150	1/2"	15	3.5/8"	2.3/4"	2.3/4"	1.1/2"	9/64"	23.0
16160	9/16"	16	3.5/8"	2.11/16"	2.3/4"	1.1/2"	9/64"	23.0
16170	5/8"	17	4.1/4"	3.1/8"	3.1/4"	1.3/4"	5/32"	33.8
16210	3/4"	21	5"	3.13/16"	3.3/4"	2"	7/32"	66.2
16250	7/8"	25	5.1/2"	4.1/4"	4.1/4"	2.1/4"	7/32"	83.3
16270	1"	27	6.1/8"	4.15/16"	4.1/2"	2.1/2"	1/4"	135.0
16360	1.1/8-1.1/4"	36	7"	5.7/8"	5.1/8"	2.7/8"	1/4"	184.5
16400	1.1/4-1.3/8"	40	8.1/16"	6.13/16"	6.1/4"	3.1/2"	1/2"	375.3
16430	1.3/8-1.1/2"	43	9"	7.1/8"	6,1/2"	3.1/2"	1/2"	540.0
16450	1.5/8"	45	11.1/4"	8.1/8"	8"	4"	1/2"	731.3
16480	1.3/4"	48	12.3/16"	8.1/2"	9"	4.1/2"	1/2"	810.0
16550	1.7/8-2"	55	15.1/8"	10.3/8"	12"	6"	1/2"	1170.0
16650	2.1/4"	65	17.1/8"	10.7/8"	14"	7"	1/2"	1935.0

Our own production

Tolerance 5%
Possible surface: selfcolored, hot dipped galvanized, painted acc. to your wishes

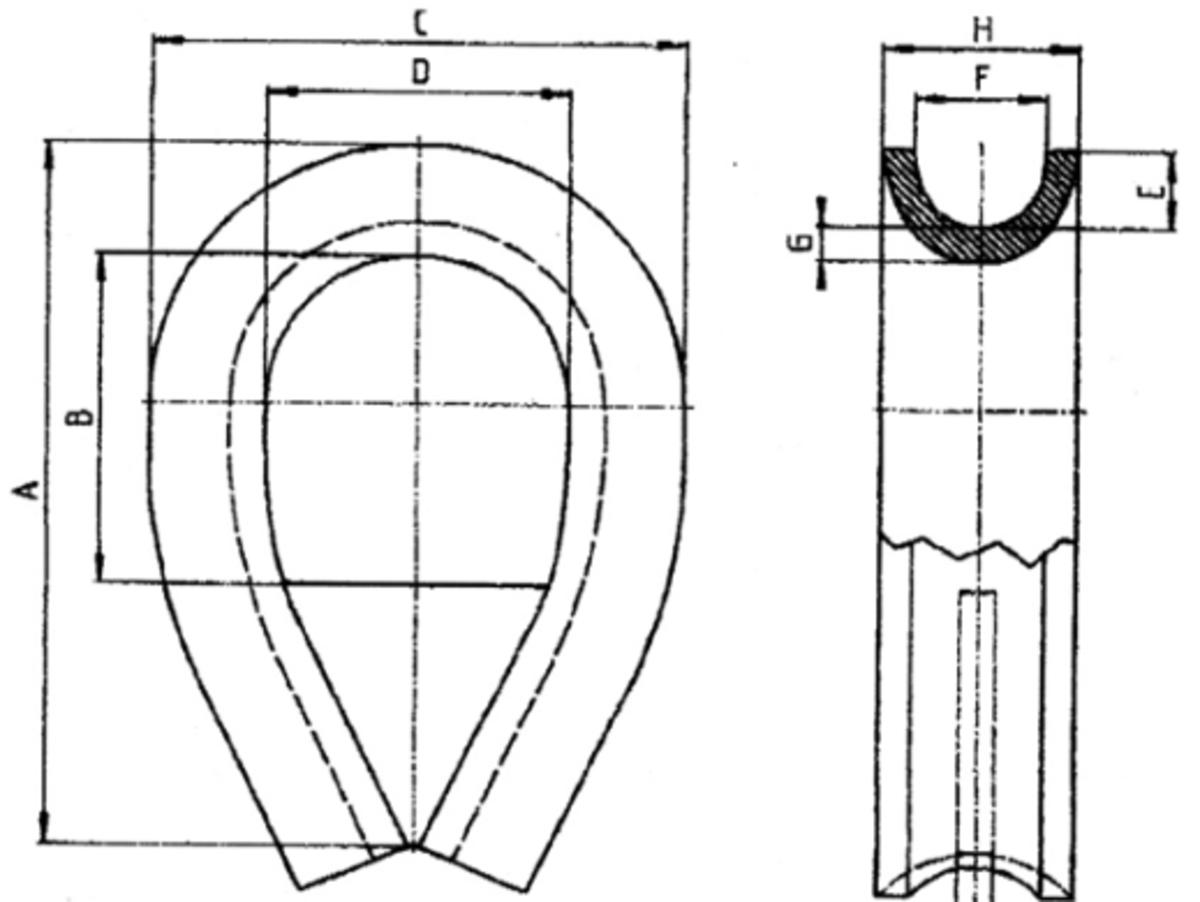

Art. No.	suitable for shackles US-Type	Groove width mm (F)	inside width mm (D)	inside length to plate mm (B)	inside length total mm	total length mm (A)	total width mm (C)	outside width mm (H)	Thickness mm (G)	Weight per 100 pcs. kg
15717	17 to	35	80	100	160	220	150.0	55	10	320
15725	25 to	40	90	120	180	245	160	65	12	510
15735	35 to	50	110	125	220	290	200	80	16	920
15755	55 to	62	140	160	280	360	250	100	20	1740
15785	85 to	72	160	175	320	390	265	115	20	1940
15812	120 to	85	190	245	380	470	300	125	20	2900
15815	150 to	100	200	290	400	540	370	150	25	3900
15820	200 to	115	210	300	420	570	380	165	25	5200

Sizes and weights can be changed! Wer reserve the right to change technical details!

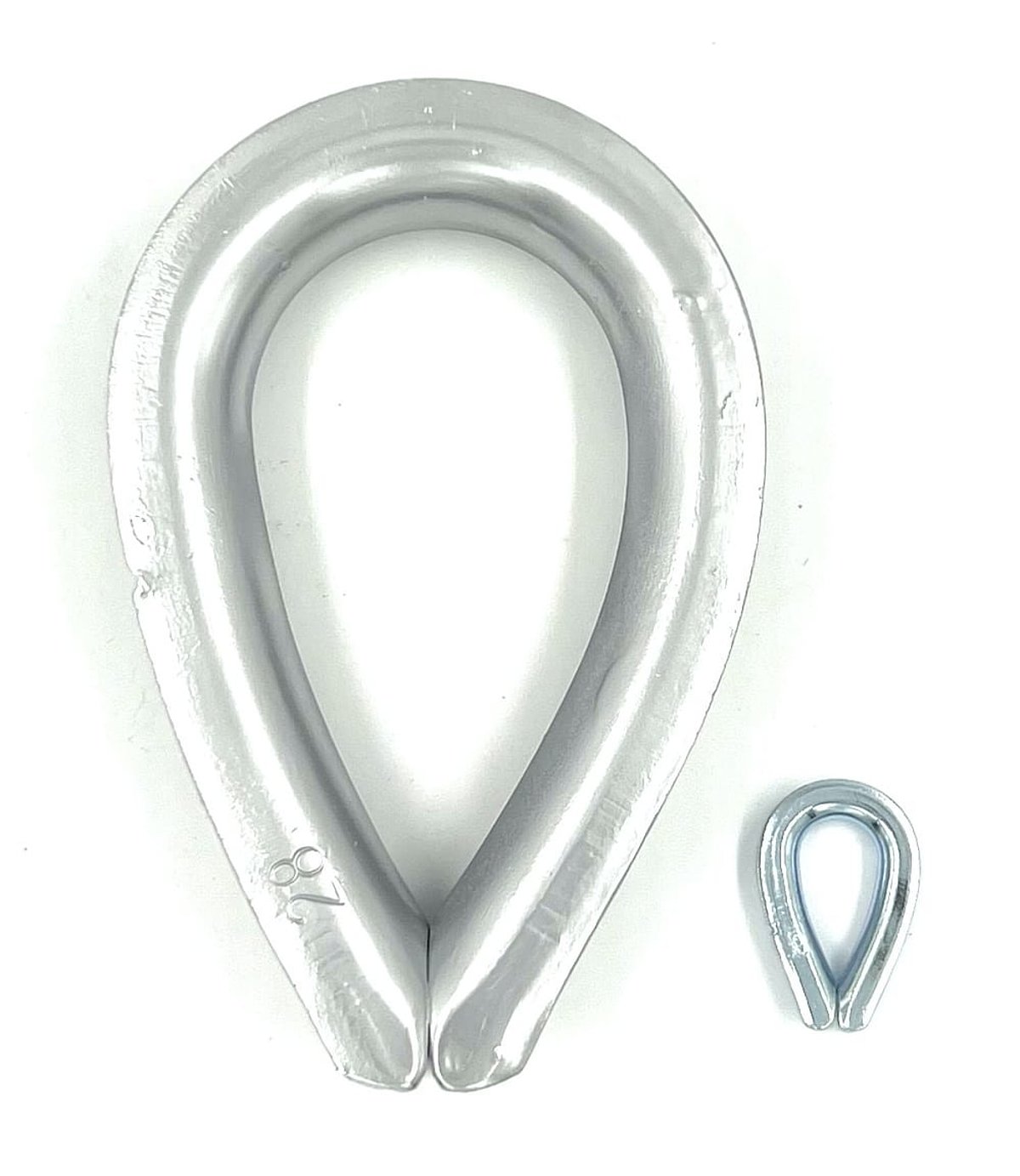

Thimbles EN 13411-1 galvanized

Solid Thimbles DIN 3091 (EN 13411-9) selfcolored

Thimbles DIN 6899 Form BF (issued January 1988) galvanized

Our own production

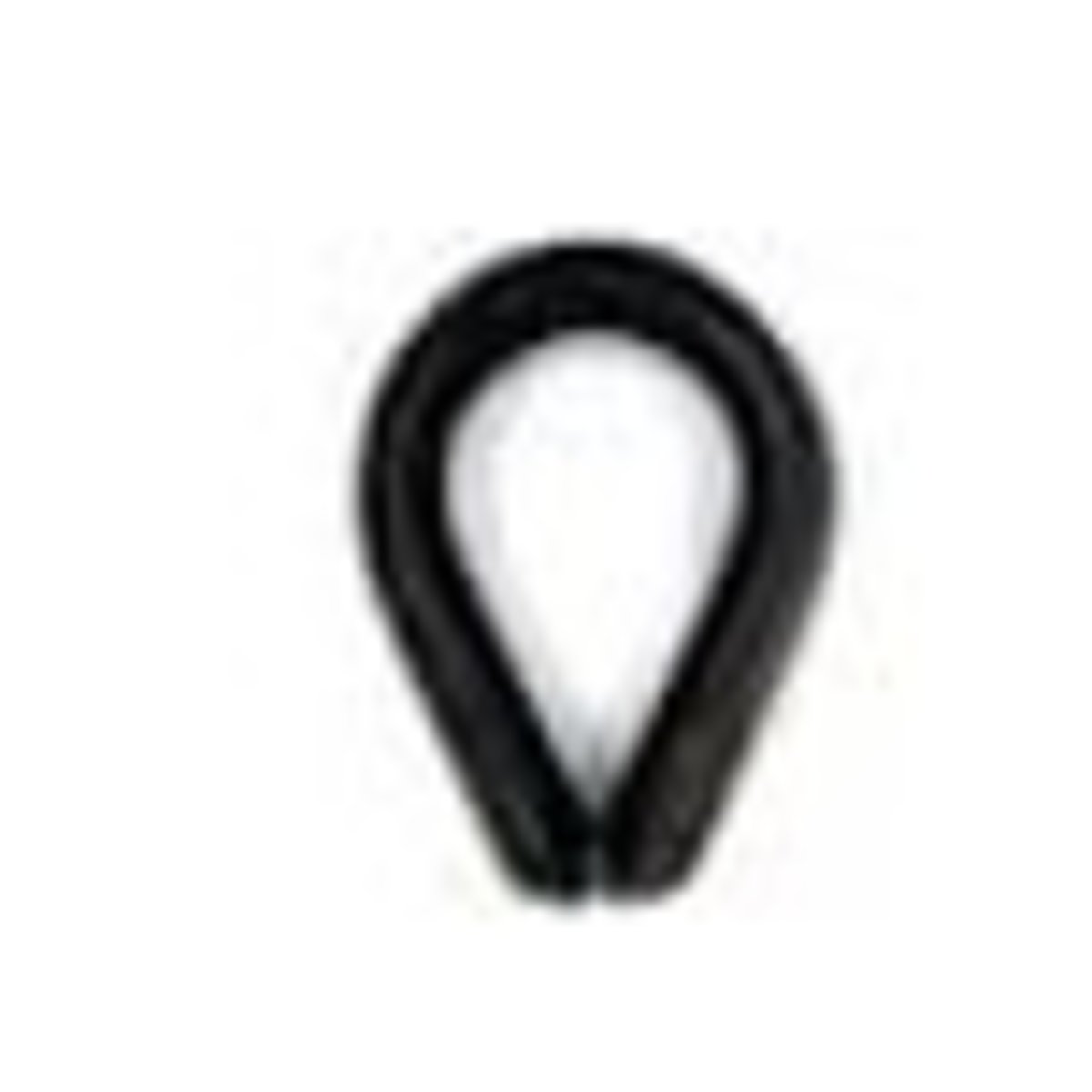

Blackline-Thimbles DIN 6899 Form BF black galvanized

Our own production

Thimbles DIN 6899 Form BF (issued Jan. 1988) hot dipped galvanized

IMPORT-Quality

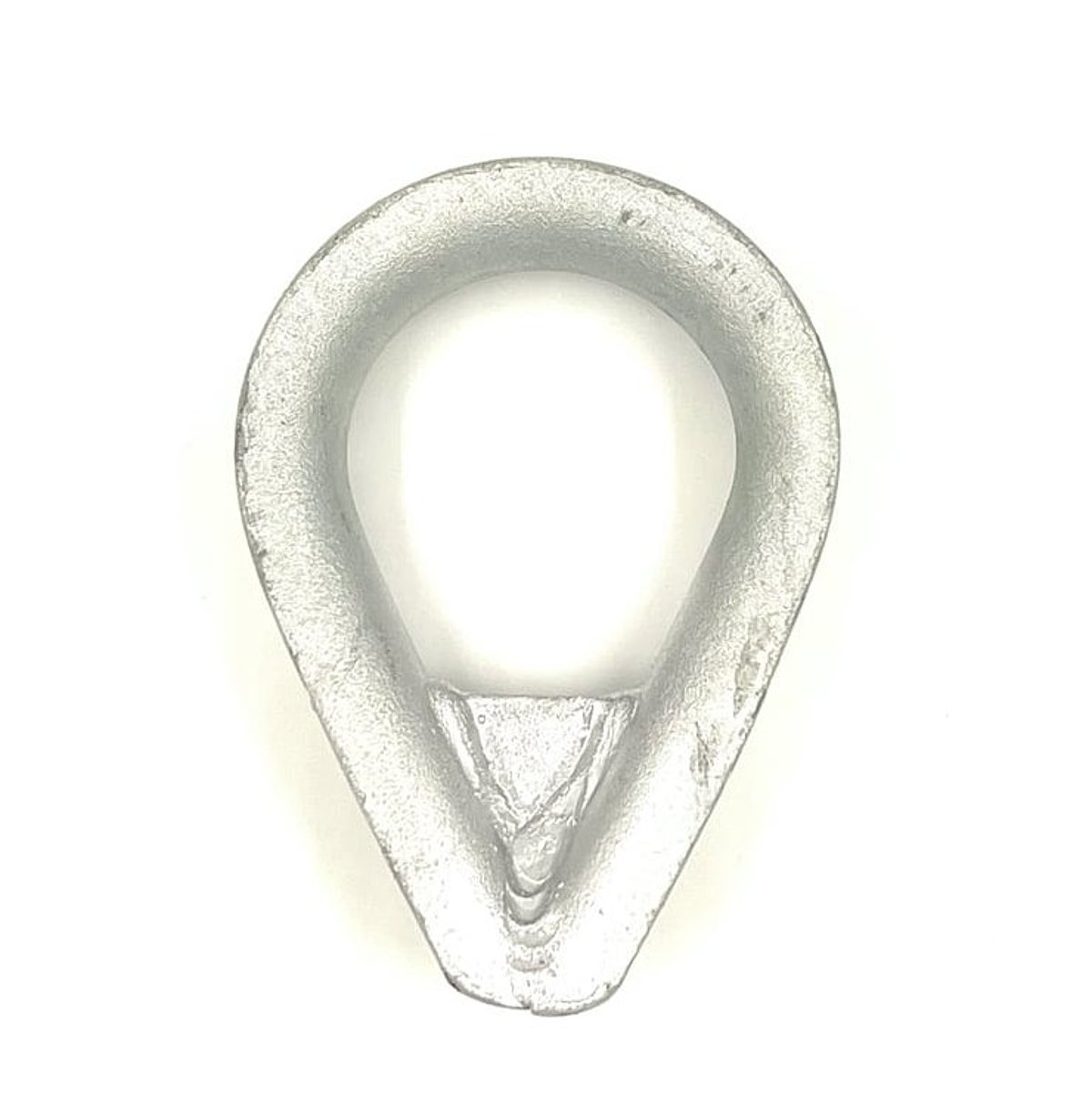

Thimbles with welded filled plate

Our own production

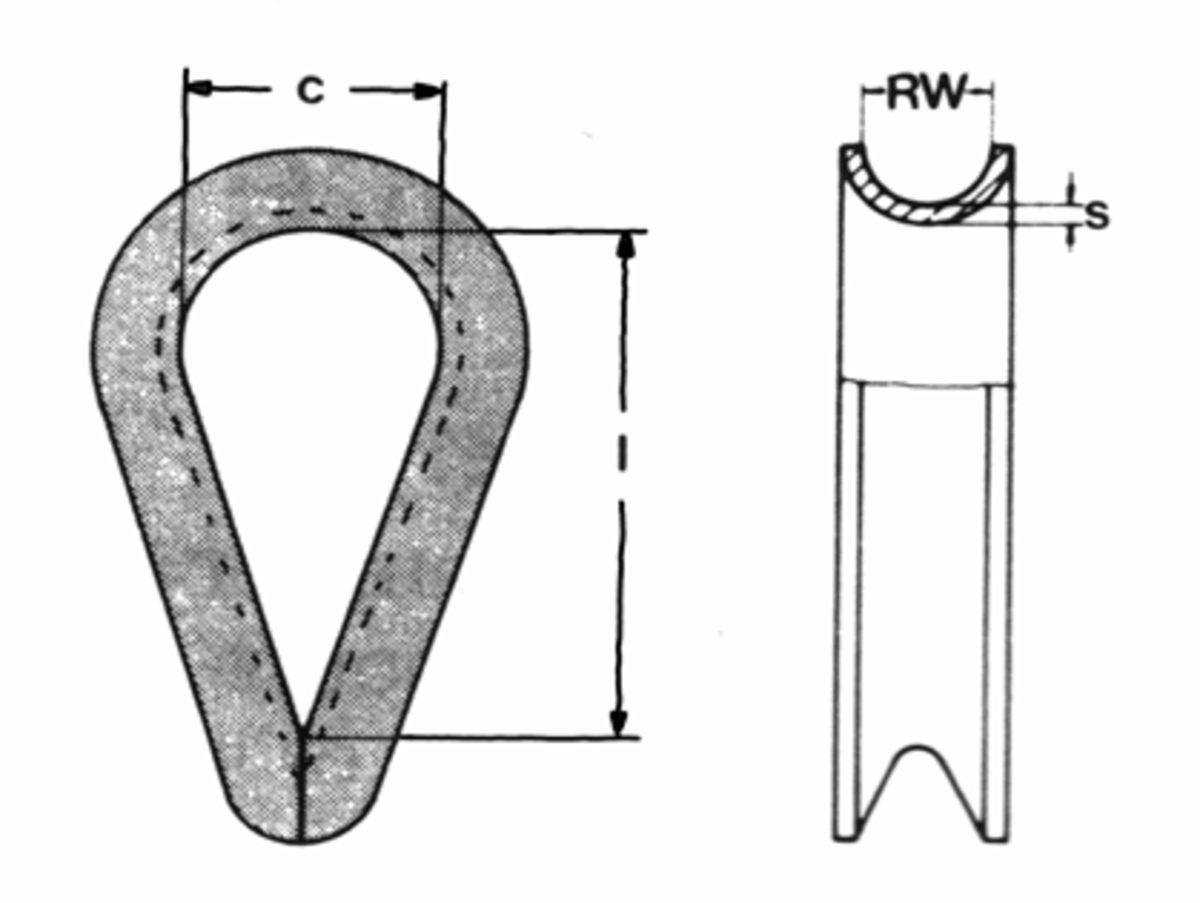

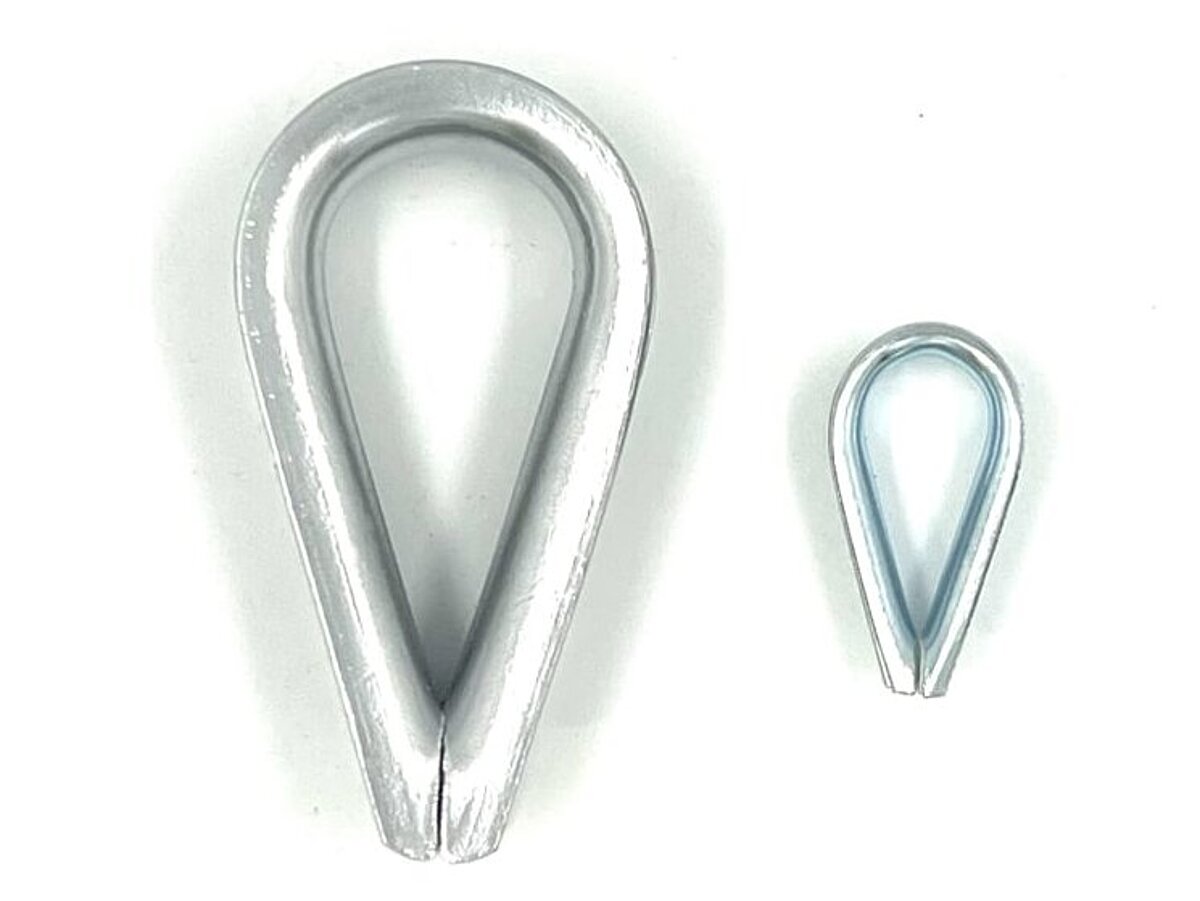

Thimbles DIN 65457, galvanized (former DIN 6899 Form A)

Our own production

Thimbles DIN 83311 hot dipped galvanized

Our own production

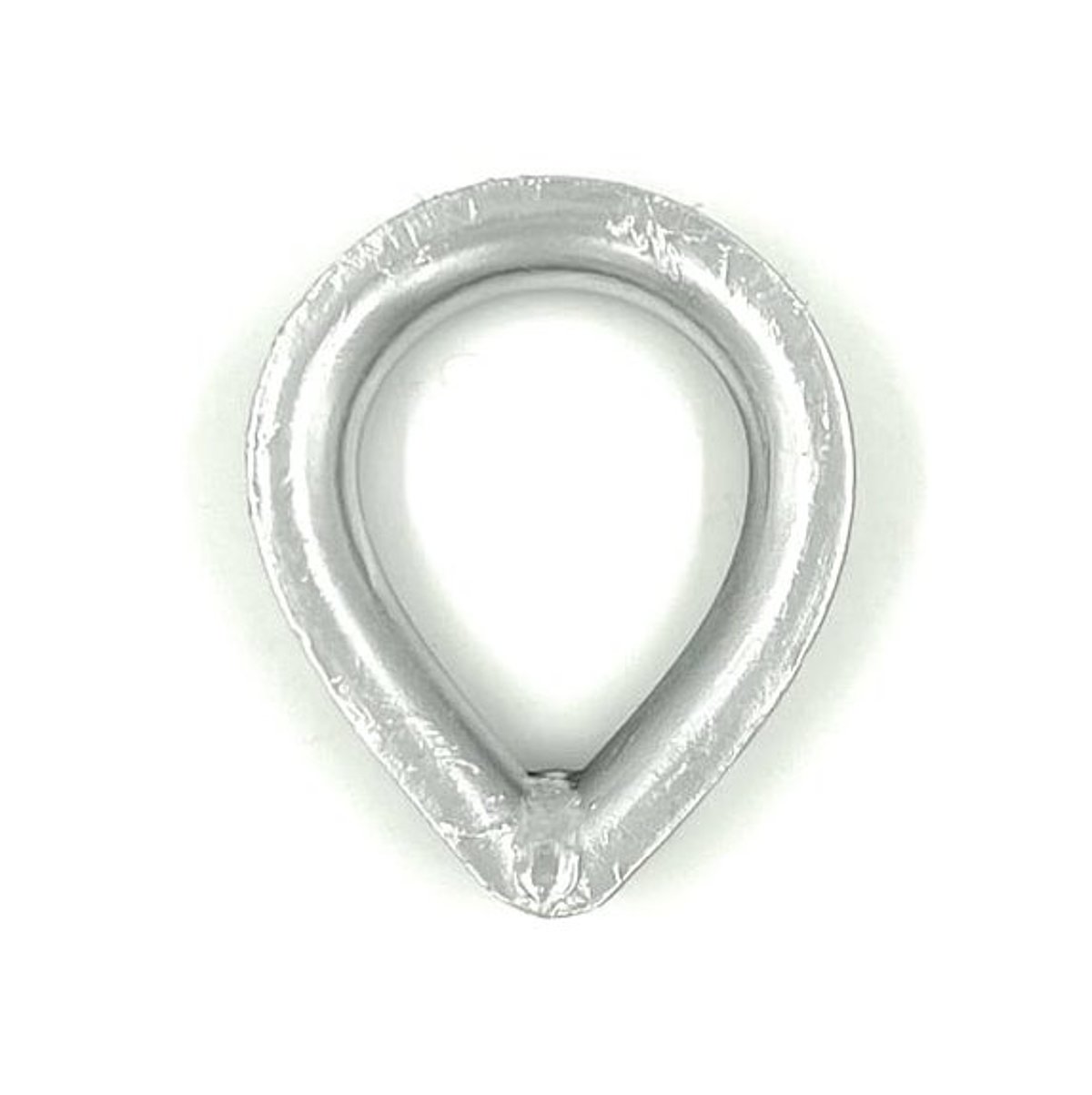

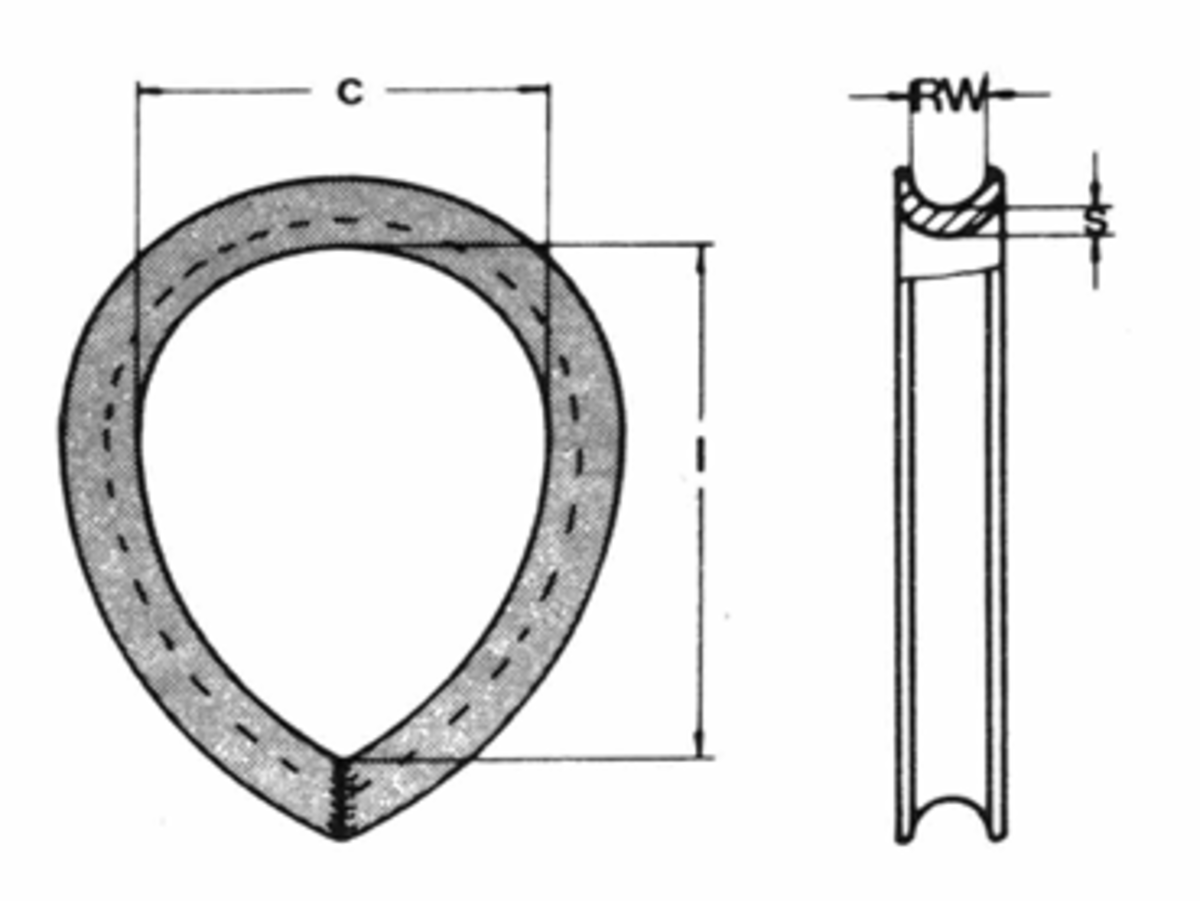

Thimbles DIN 76032 hot dipped galvanized, welded ends

Our own production

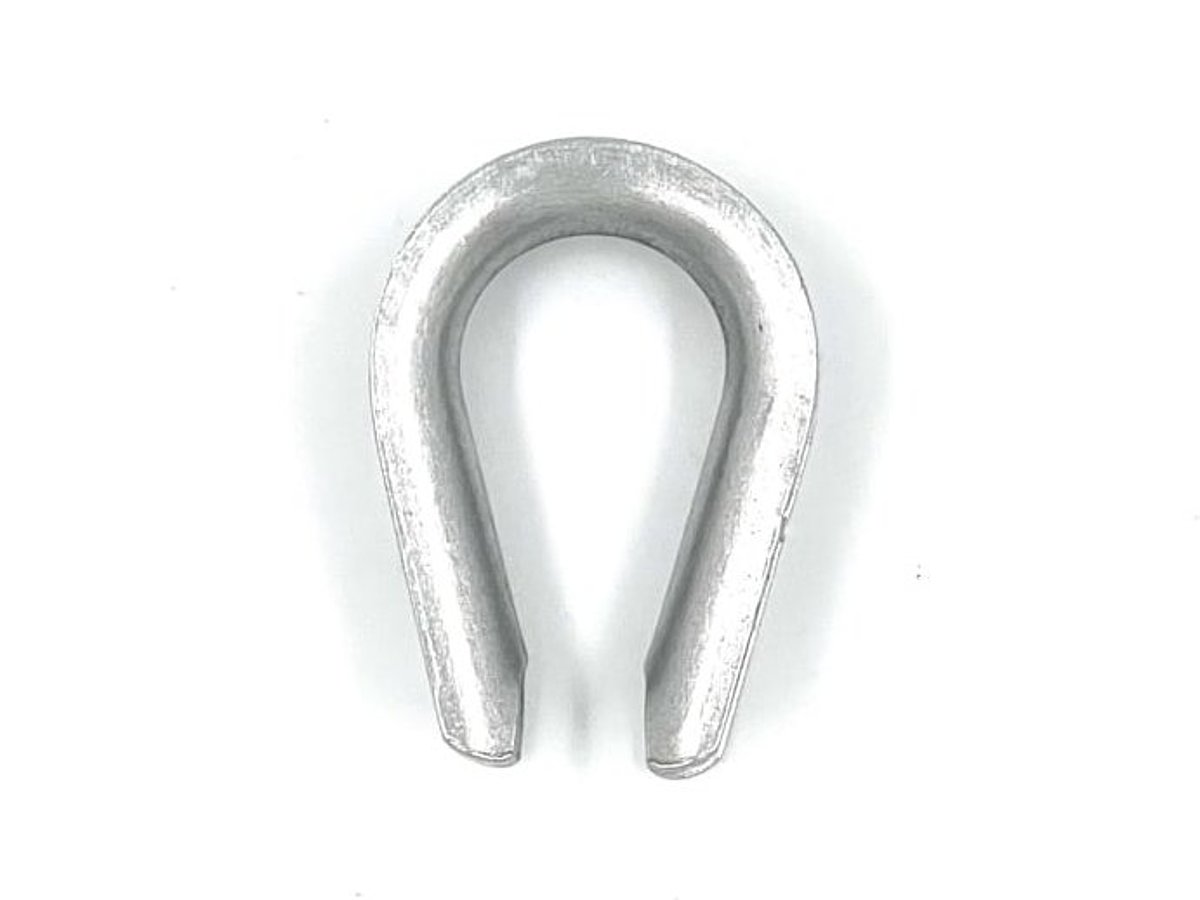

Thimble DIN 43154 hot dipped galvanized

Our own production

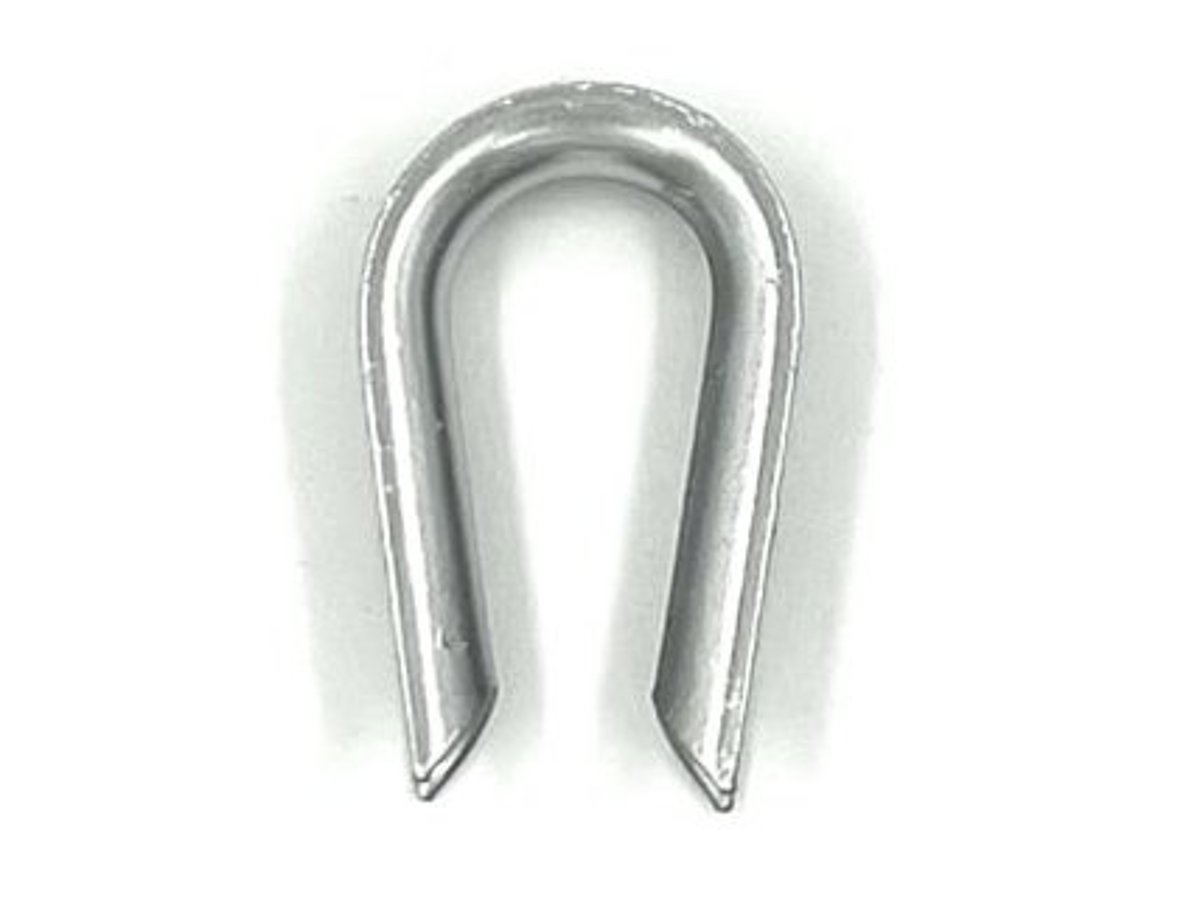

Thimbles DIN 7472 Material Aluminium

Our own production

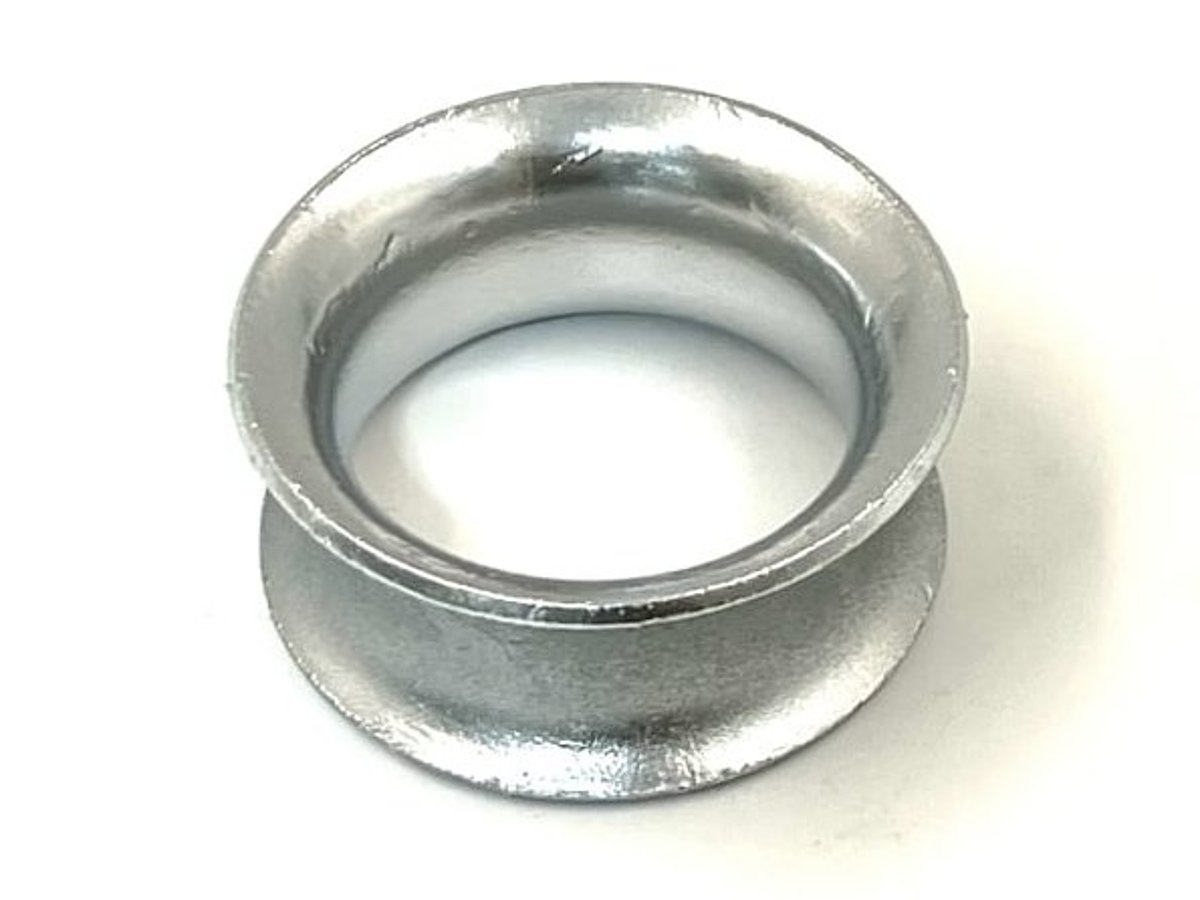

Roundthimbles galvanized

Our own production

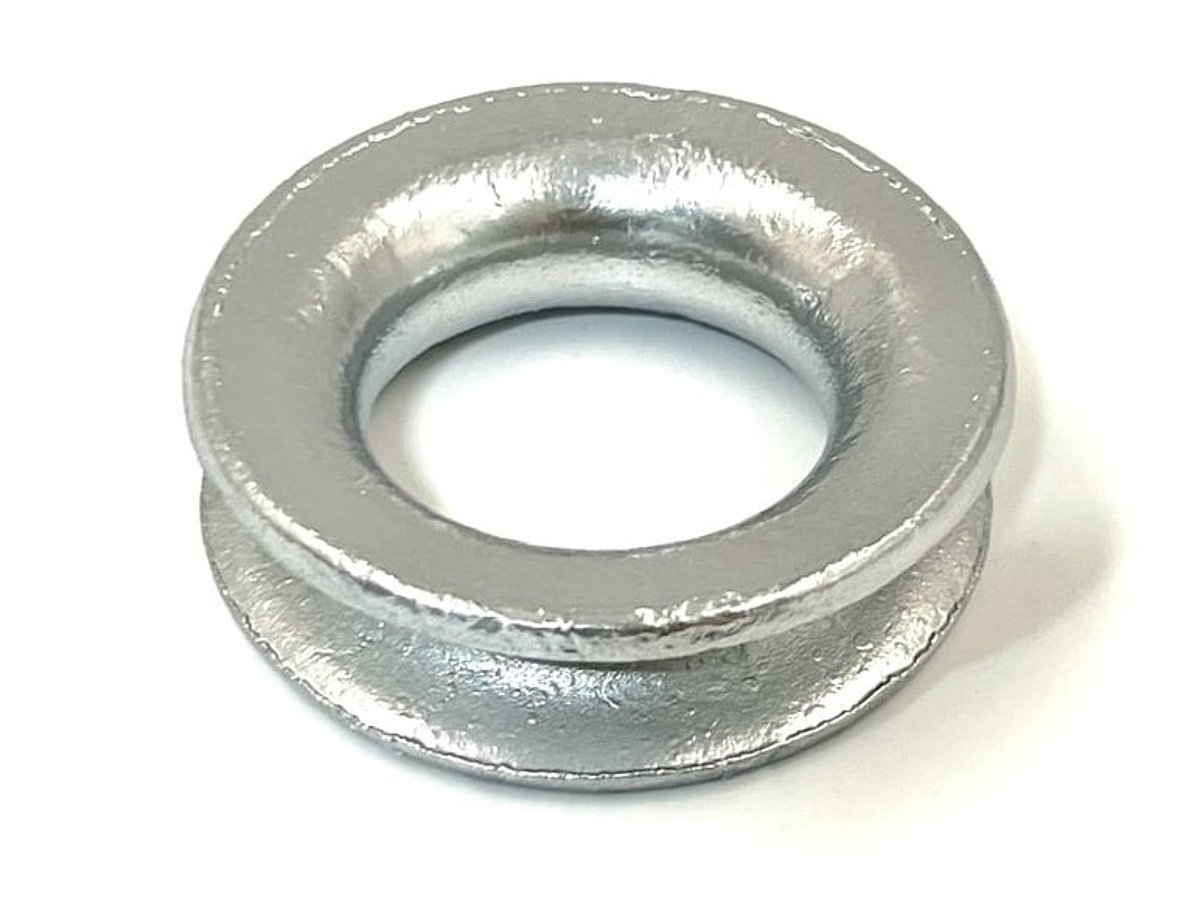

Container-Roundthimbles hot dipped galvanized

Our own production

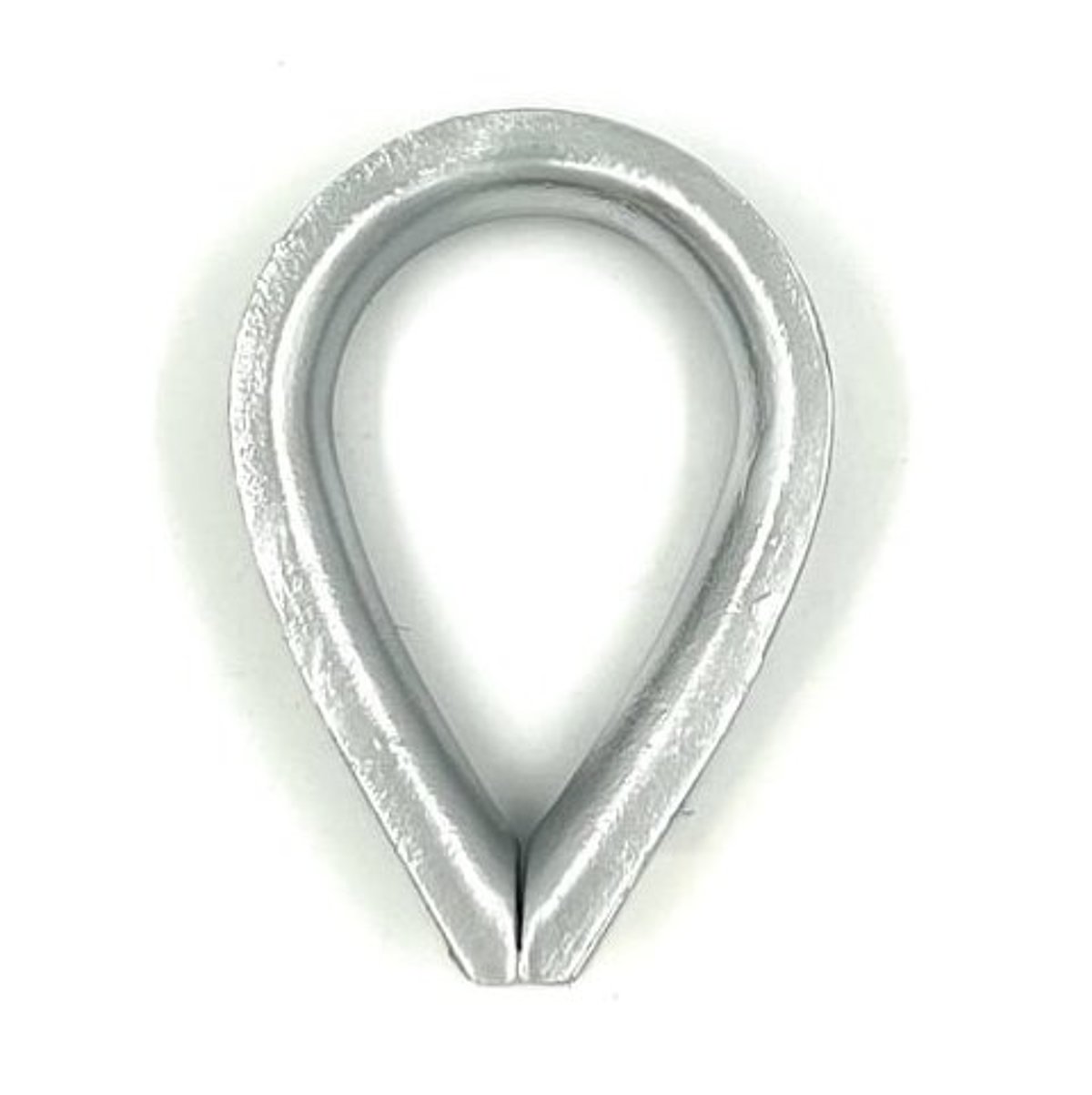

Special Thimbles, galvanized

Our own production

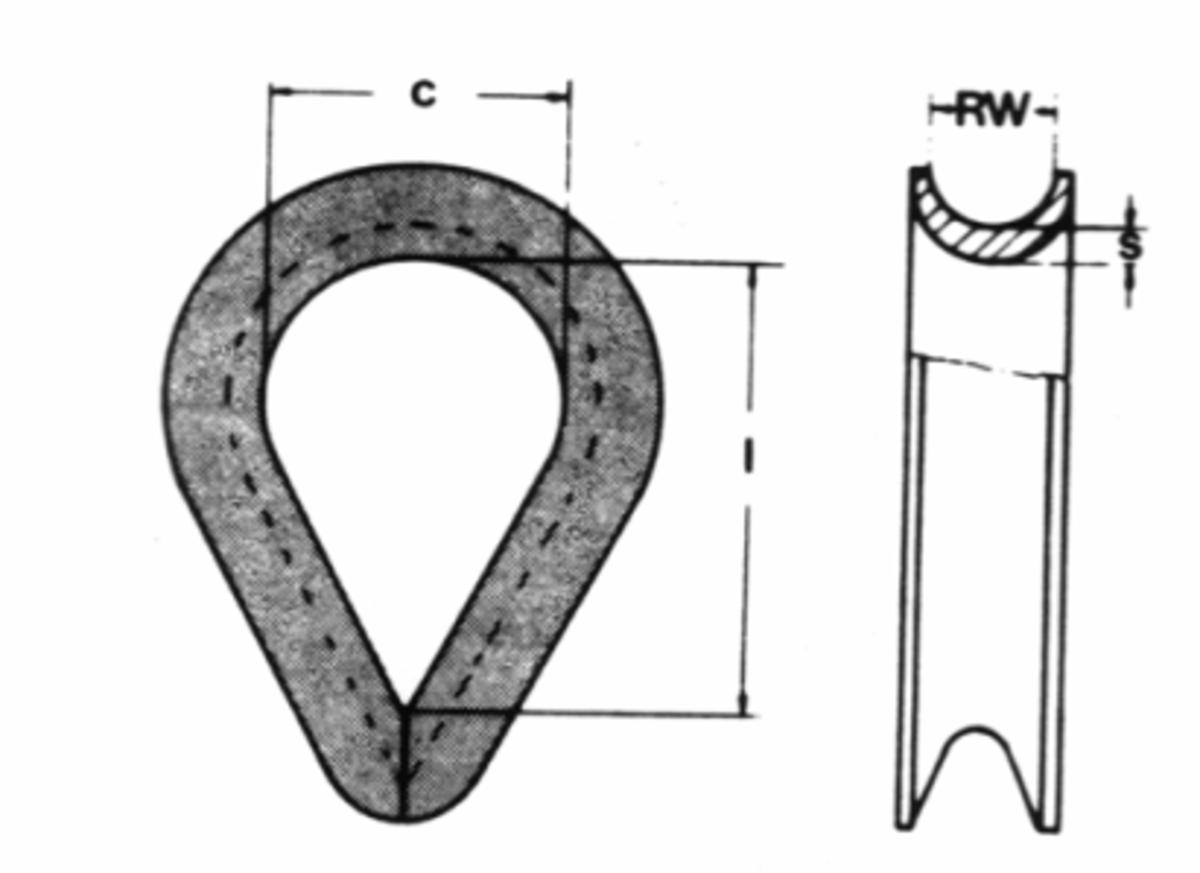

USA-Thimble

USA-Thimble

Heavy Duty Thimbles HEG® with welded filled plate, hot dipped galvanized

Our own production

With Höppe every rope finds a good end!
